Product Description
|
Specifications
|
||
|---|---|---|

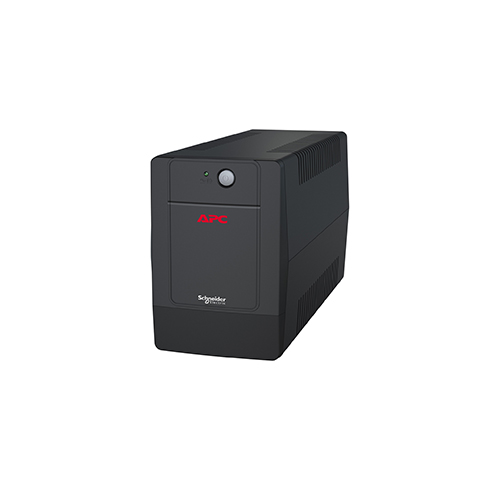

| Model | APC BVG1600I-GR | |
| Product Line | Easy UPS BV/G Series | |
| UPS Type | Line-Interactive UPS | |
| Power Capacity | 1600 VA / ~960 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Frequency | 50/60 Hz | |
| Input Voltage Range | Approx. 170–280 V AC | |
| Nominal Output Voltage | 230 V AC | |
| Output Frequency | 50/60 Hz | |
| Waveform Type | Stepped approximation to sine wave | |
| Topology | Line-Interactive | |
| Outlets | Schuko (CEE 7/4) sockets — typically 4 total (battery + surge) | |
| Surge Protection | Yes (AC surge suppression) | |
| Automatic Voltage Regulation (AVR) | Yes (boost & trim correction) | |
| Battery Type | Sealed lead-acid (VRLA), maintenance-free | |
| Battery Configuration | Higher-capacity battery suitable for 1600 VA rating | |
| Battery Recharge Time | ~6–8 hours (to ~90% after deep discharge) | |
| Transfer Time (Utility → Battery) | Typically ~6–10 ms | |
| LED & Audible Indicators | Yes (status, battery mode, overload) | |
| Resettable Circuit Breaker | Yes | |
| Generator Compatibility | Yes (auto-restart on mains return) | |
| Dimensions (H × W × D) | Mid-tower UPS size (approx.) | |
| Weight | ~10–12 kg (depends on battery) | |
| Operating Temperature | 0–40 °C | |
| Operating Humidity | 0–90 % relative (non-condensing) | |
| Noise Level | ~< 45 dB typical | |
| Form Factor | Tower | |
| Color | Black | |
| Typical Backup Time | Several minutes at light loads; decreases as load increases | |
| Warranty | Typically 1–2 years (varies by region) | |
