Product Description
|
Specifications
|
||
|---|---|---|

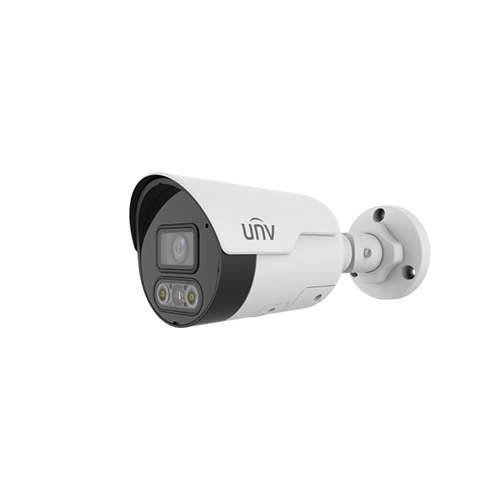

| Model | IPC2122LE‑ADF28KMC‑DL | |
| Camera Type / Form Factor | Bullet / Fixed | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS | |
| Resolution / Frame Rate | 2MP (1920 × 1080) @ 30/25 fps; 720p @ 30/25 fps | |
| Compression Formats | Ultra 265, H.265, H.264, MJPEG | |
| Lens / Focal Length | Fixed 2.8 mm | |
| Field of View | Horizontal: ~106.7° | |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with supplemental light | |
| Night Vision / Lighting | IR up to 30m; White light up to 30m (Dual-light) | |
| WDR / Image Enhancement | 120 dB True WDR, BLC, HLC, 2D/3D DNR, Smart IR, ROI | |
| Day / Night Mode | ICR (IR Cut Filter), Auto Switch | |
| Smart Features | Motion Detection, Line Crossing, Intrusion, Tamper Alarm, Audio Detection | |
| Audio | Built-in Microphone & Speaker (Two-way audio) | |
| Memory / Storage | MicroSD Card Slot (up to 512 GB) | |
| Network / Protocols | 10/100 Ethernet, IPv4, HTTP, RTSP, FTP, ONVIF, etc. | |
| Power Supply | 12V DC or PoE (IEEE 802.3af) | |
| Power Consumption | Max. 9W | |
| Weather Resistance | IP67 Rated | |
| Operating Temperature | -30°C to +60°C | |
| Humidity | ≤ 95% RH (non-condensing) | |
| Dimensions | 192 × 75 × 74 mm | |
| Weight | Approx. 400g | |
| Surge Protection | 4 kV | |
| Additional Features | Corridor Mode, 3-axis Adjustment, Watermark, Privacy Mask, ONVIF Compatible | |
| Use Case | Outdoor surveillance, full-color at night with dual-light technology | |
