Product Description
| Feature Category | Specification |
|---|---|

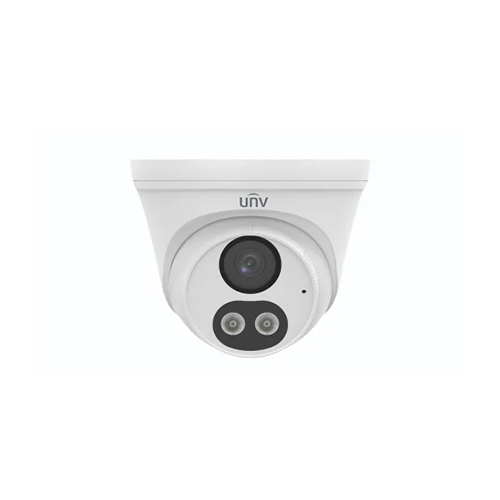

| Model | IPC3612LB‑AF28K‑DL |
| Series / Type | EasyBasic / Dual-Light Turret / ColorHunter |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Maximum Resolution | 2MP (1920 × 1080) @ 30/25 fps |
| Video Compression | Ultra265, H.265, H.264 |
| Lens | Fixed 2.8 mm, F1.6 |
| Field of View (H × V × D) | Horizontal: ~101.1°Vertical: ~55.0°Diagonal: ~112.4° |
| Minimum Illumination | Colour: 0.005 lux (F1.6, AGC ON); 0 lux with light |
| IR & Warm Light Range | Smart IR: up to 30 m (98.4 ft)Warm Light: up to 30 m (98.4 ft) |
| Day/Night Functionality | IR-cut filter with auto switch (ICR) |
| Noise Reduction | 2D/3D DNR (Digital Noise Reduction) |
| Wide Dynamic Range | DWDR (Digital WDR) |
| Audio Input | Built-in microphone |
| MicroSD Storage | Supports up to 512 GB |
| Network Interface | 10/100 Mbps Ethernet (RJ45) |
| Power Supply | 12 V DC ±25% or PoE (IEEE 802.3af) |
| Power Consumption | Max. 5.0 W |
| Ingress Protection | IP67 (dust & water protection) |
| Operating Temperature | −30°C to +60°C |
| Humidity | ≤ 95% RH (non-condensing) |
| Surge Protection | 4 kV |
| Dimensions (L × W × H) | 161 mm × 63 mm × 62 mm |
| Weight | Approx. 360 g |
