Ubiquiti UniFi USW-Mission-Critical 8-Port Gigabit Switch with Integrated Battery Backup and PoE Price in Dubai UAE

Sold: 0

Enquire on Whatsapp
  Ask a Question
SKU: USW-Mission-Critical Category:

Product Description

Specifications

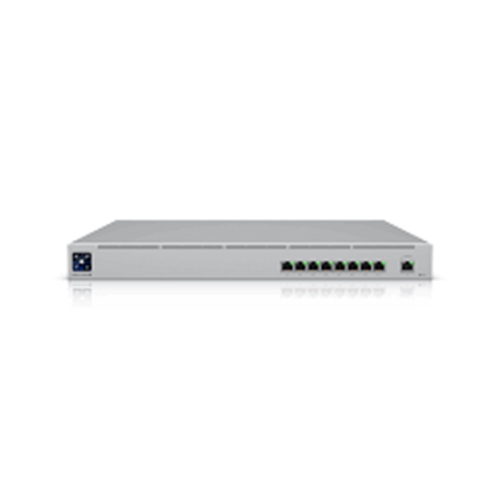

Product Name Ubiquiti UniFi USW-Mission-Critical
Category / Type Managed Layer-2 Gigabit PoE switch with integrated battery backup
Form Factor 1U rackmount
Port Layout 9 × Gigabit RJ-45 ports in total: 4 ports support PoE+, 4 ports support PoE++, plus 1 dedicated uplink port
Total PoE Budget 120 W
Max PoE per Port • PoE+ (802.3at): ~30 W • PoE++ (802.3bt): ~60 W
Battery Capacity 368 Wh internal lithium-ion battery
Power Inputs / Redundancy • AC input 100-240 V • External 48 V DC battery input • Battery backup ensures uninterrupted power to PoE ports
Switching Capacity 18 Gbps
Non-Blocking Throughput 9 Gbps
Forwarding Rate ~13-26 million packets per second (depending on packet size)
Dimensions (W × D × H) 442 × 480 × 44 mm
Weight ~ 9.0 kg (without rack mount); ~9.2 kg with mounting brackets
Enclosure Material SGCC steel (body and rack mount)
Display / Interface 1.3-inch touchscreen display for status / diagnostics
Ambient Operating Temperature -5 °C to +40 °C
Operating Humidity 5-95%, non-condensing
Certifications / Protection CE, FCC, IC; ESD/EMP protection ±24kV air/contact
Layer-2 Features • IGMP snooping • STP / RSTP • Port isolation • LACP port aggregation • 802.1X control • MAC-based ACLs and device isolation • Port mirroring • Jumbo frames • Flow control, storm control, multicast & broadcast rate limiting • LLDP-MED, voice VLAN, port-level disable etc.
Power Consumption (No PoE Output) ~ 50 W
Power Consumption (With PoE + Battery + Outputs) Up to ~240 W
