Product Description
Category | Specification / Feature |
---|---|

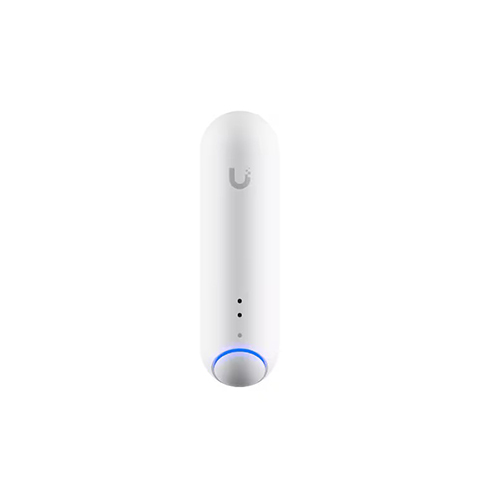

Product Name / Model | Ubiquiti UniFi UP‑Sense (All‑In‑One Smart Sensor) |
Purpose / Use | Multi-sensor for environmental and security monitoring integrated with UniFi Protect |
System Compatibility | Works with UniFi Protect via Bluetooth; requires Bluetooth-capable UniFi 6 access point |
Sensors Included | – Motion sensor (up to 5 m / 16 ft) – Magnetic entry sensor (door/window open/close) – Accelerometer (e.g. garage doors) – Temperature sensor – Humidity sensor – Ambient light sensor – Alarm sound sensor (detects UL217/UL2034 patterns) – Water leak detection (via optional adapter) |
Wireless Interface | Bluetooth 5.0 / BLE |
Max Wireless Power | 5 dBm |
Antenna / Frequency | 2.4 GHz, internal antenna (0.5 dBi gain) |
Max Power Consumption | 77 mW |
Power Source | 1 × CR123A lithium battery |
Battery Life | Up to 1 year (typical use) |
Status Indicators | RGB LEDs (Red, Blue, White) |
Reset Button | Yes (Factory reset) |
Mounting Options | Flat wall mount, corner mount (adhesive or screws), magnetic mount |
Enclosure Material | Polycarbonate |
Dimensions | Ø24 × 83.5 mm (0.94″ × 3.29″) |
Weight | 50.2 g (1.77 oz) |
Operating Temperature | 0 to 45 °C (32 to 113 °F) |
Operating Humidity | 10% to 90% non-condensing |
Compliance | CE, FCC, IC |
Typical Applications | – Intrusion detection – Door/window monitoring – Environmental monitoring – Alarm sound detection – Flood detection (with adapter) |
In the Box | – UP‑Sense sensor – Mounting plates (flat and corner) – Adhesive + screws – Magnet – Battery – Tool for battery access |
