Product Description
Specifications
|
||
---|---|---|

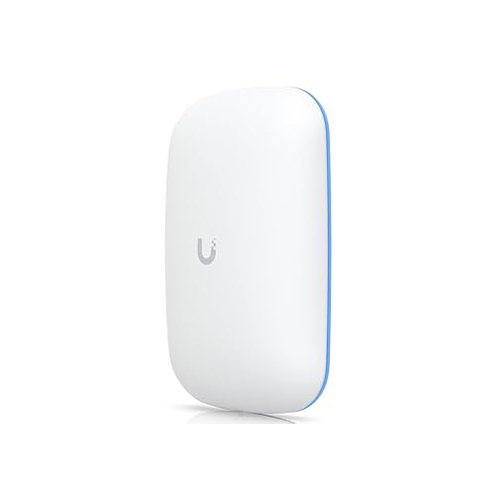

Model | Ubiquiti UniFi U6 Extender | |
Wi-Fi Standard | Wi-Fi 6 (802.11ax) | |
Frequency Bands | Dual-band: 2.4 GHz (2×2 MU-MIMO) and 5 GHz (4×4 MU-MIMO) | |
Max Aggregate Throughput | Up to 5.3 Gbps (573.5 Mbps on 2.4 GHz and 4.8 Gbps on 5 GHz) | |
Spatial Streams | 6 (2×2 on 2.4 GHz, 4×4 on 5 GHz) | |
Channel Bandwidth | 160 MHz (5 GHz), 40 MHz (2.4 GHz) | |
Antenna Gain | 5 dBi (2.4 GHz), 6 dBi (5 GHz) | |
Max Transmit Power | 22 dBm (2.4 GHz), 26 dBm (5 GHz) | |
Networking Interface | 1 × Gigabit Ethernet (PoE-in) | |
Power Consumption | 11 W (max) | |
Supported Voltage Range | 110–240V AC, 50/60 Hz | |
Weight | 290 g (US version), 340 g (EU version) | |
Dimensions (US/EU) | 169.7 × 112.2 × 32.2 mm / 169.7 × 112.2 × 77.6 mm | |
Mounting Options | Fits standard US/EU duplex wall outlets | |
Management Interface | Bluetooth (for initial setup) | |
Concurrent Clients | Supports 300+ devices | |
BSSIDs per Radio | Up to 8 per radio | |
Security Features | WPA3, WPA2, WPA, WPA-Enterprise, VLAN support, Guest Network Isolation, QoS | |
Management Platform | UniFi Network application or UniFi Controller | |
Certifications / Compliance | CE, FCC, IC; NDAA compliant |
