Product Description
|
Specifications
|
||
|---|---|---|

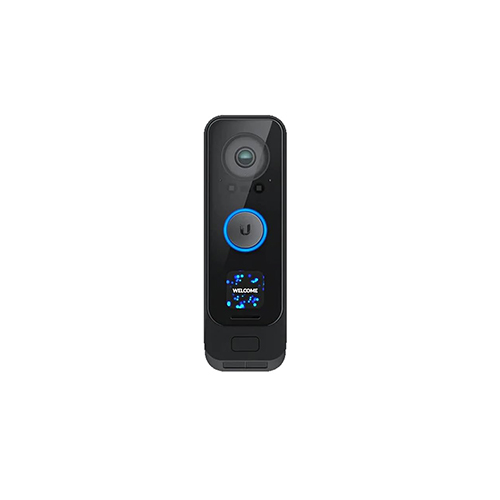

| Model | UVC-G4-Doorbell-Pro | |
| Main Camera | 5MP CMOS sensor | |
| Package Camera | 8MP CMOS sensor | |
| Camera Resolution | Main: 1600 × 1200 (2MP) @ 30 fps; Package: 1600 × 1200 (2MP) @ 2 fps | |
| Field of View (FOV) | Main: H: 138°, V: 114°, D: 155° (LDC On); Package: H: 97.5°, V: 79.4°, D: 118.2° | |
| Lens Type | Fixed focal length | |
| Night Vision | Built-in IR LED illumination and IR cut filter | |
| Audio | Two-way audio with echo cancellation | |
| Display | Programmable display for alerts or delivery instructions | |
| Lighting | Built-in porch light illuminating objects up to 2 meters away | |
| Motion Detection | Yes | |
| Weatherproofing | IPX4-rated, weather-resistant casing | |
| Mounting Options | Wall mount, 20° wedge mount (included); optional gang box or junction box | |
| Networking Interface | GbE RJ45 port | |
| Power Method | PoE (Power over Ethernet) | |
| Supported Voltage Range | 37–57V DC | |
| Max Power Consumption | 7W | |
| Processor | Quad-core Arm® Cortex®-A53 based chip | |
| Operating Temperature | -30 to 40°C (‑22 to 104°F) | |
| Operating Humidity | 0 to 90% non-condensing | |
| Dimensions | 160.6 × 51.7 × 35.1 mm (6.3 × 2.0 × 1.4 inches) | |
| Weight | 253 g (8.9 oz); with flat wall mount: 286 g (10.1 oz); with 20° wedge mount: 325 g (11.5 oz) | |
| Enclosure Material | Polycarbonate, aluminum alloy | |
| Certifications | CE, FCC, IC | |
| Software Compatibility | UniFi Protect (Web & Mobile app) | |
| Special Features | Smart detections (People, Vehicles, Animals); tamper-resistant; low-profile design | |
