Product Description
Specifications
|
||
---|---|---|

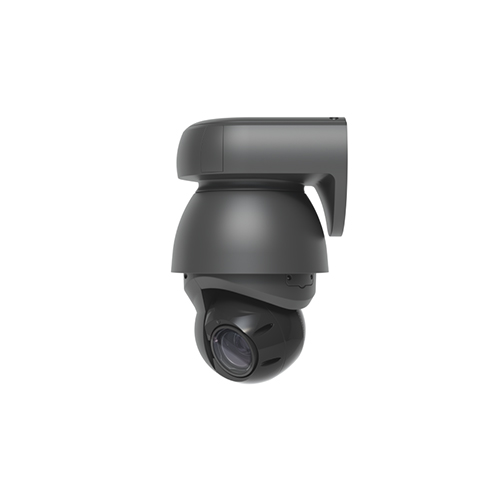

Model | UVC-AI-PTZ-B | |
Resolution | 8 MP (3840 × 2160, 16:9) | |
Sensor | 1/1.8″ CMOS | |
Lens | 22× optical zoom (F6.36–138.5 mm; ƒ/1.5–ƒ/3.4) | |
Field of View (FOV) | Wide: Horizontal: 59.8°, Vertical: 44.4°, Diagonal: 70°Telephoto: Horizontal: 3°, Vertical: 2.24°, Diagonal: 3.76° | |
Pan-Tilt Range | Pan: 360° (Endless)Tilt: 120° | |
Max Frame Rate | 30 fps | |
Night Vision | Built-in adaptive IR LED illumination with IR cut filter; up to 100 m (328 ft) range | |
Smart Detection | People, vehicles, and animals detection | |
Face Recognition | Yes | |
License Plate Recognition | Yes | |
Weatherproofing | IP66-rated (dust-tight and water-resistant) | |
Mounting Options | Wall, pole mount, desk stand (included) | |
Networking Interface | 1 × Gigabit Ethernet (PoE++) | |
Power Consumption | Max 51W | |
Operating Temperature | -40°C to 50°C (‑40°F to 122°F) | |
Operating Humidity | 0–90% non-condensing | |
Dimensions (W × D × H) | Without mount: 207 × 223.7 × 341.3 mm (8.2 × 8.8 × 13.4″)With mount: 372 × 241 × 299 mm (14.7 × 9.5 × 11.8″) | |
Weight | Without mount: 3.8 kg (8.4 lb)Wall mount: 3 kg (6.6 lb)Table stand: 150 g (5.3 oz)Pole mount: 320 g (11.3 oz) | |
Certifications | CE, FCC, IC | |
Software Compatibility | UniFi Protect (Web & Mobile app) | |
Special Features | Multi-TOPS AI Engine; NDAA compliant; tamper-resistant design |
