Ubiquiti UniFi ECS-Aggregation Switch Price in Dubai UAE

Sold: 0

Enquire on Whatsapp
  Ask a Question
SKU: ECS-Aggregation Category:

Product Description

Specifications

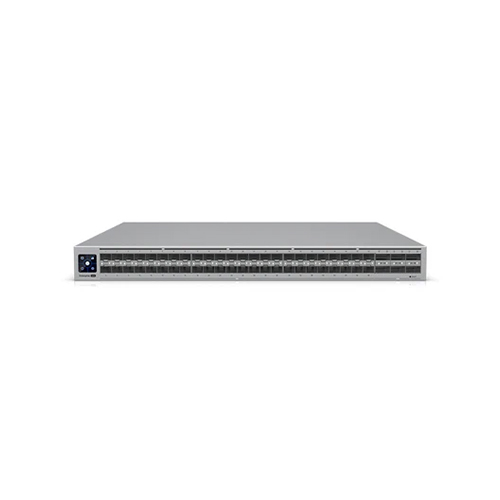

Product Name Ubiquiti UniFi ECS-Aggregation (Enterprise Campus Aggregation Switch)
Category / Type High-density Layer-3 Aggregation / Core Switch
Form Factor 1U Rackmount chassis
Port Layout 48 × 25G SFP28 ports + 6 × 100G QSFP28 ports
Supported Network Speeds 25 Gbps, 100 Gbps on respective ports (QSFP28/SFP28)
Switching Capacity ~ 3.6 Tbps
Non-Blocking Throughput ~ 1.8 Tbps
Forwarding Rate ~ 2.3-2.4 Billion packets per second (Bpps)
MAC / Routing Table Size • MAC address table: ~ 256,000 entries • ARP entries / IPv4 routes (static): ~ 512,000 entries
VLANs Supported 1,000 VLANs
Packet Buffer Size ~ 24 MB
Management / Display • 1.3-inch touchscreen LCM display • Etherlighting™ port-back lighting for status / port identification
Redundancy / Reliability Features • 2 hot-swappable AC/DC 550 W power modules (1+1 redundancy) • 5 hot-swappable fans (4+1 redundancy)
Power Input / Power Consumption AC input 100-240 V Max power draw ~ 340 W
Physical Dimensions 442.4 × 43.7 × 496 mm (W × H × D)
Weight ~ 9.9 kg
Operating Environment Temperature: −5 °C to +40 °C Humidity: 10-95% non-condensing
Enclosure Material SGCC steel body
Electrical / Safety Protections ESD / EMP protection: approx ±12 kV air discharge, ±8 kV contact discharge
Layer-2 Features STP / RSTP; LACP port aggregation; IGMP snooping; port isolation; jumbo frames; DHCP snooping/guarding; port mirroring; ACLs; multicast/broadcast rate limiting; storm control; loop protection; 802.1X etc.
Layer-3 Features Static routing; inter-VLAN routing; DHCP relay; VRRP for failover; BGP dynamic routing support (future firmware)
Certifications / Compliance CE, FCC, IC (depending on region)
