Product Description
Specifications
|
||
---|---|---|

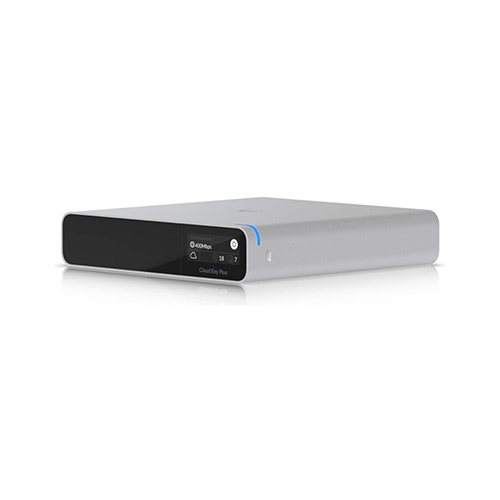

Model | UCK-G2-SSD | |
Processor | Octa-core ARM Cortex-A53 (8 cores) | |
Memory | 3 GB RAM (LPDDR4) | |
Storage | 32 GB eMMC + 1 TB 2.5″ SATA SSD (user-upgradeable) | |
Networking Interface | 1 × Gigabit Ethernet (PoE+ 802.3af) | |
USB Ports | 2 × USB-C | |
Power Input | 9V DC, 2A via USB-C or Power over Ethernet (PoE) | |
Max Power Consumption | 9.6 W | |
Display | 1.42″ grayscale OLED | |
Buttons | 1 × Power, 1 × Reset | |
LED Indicators | 1 × Power (White/Blue) | |
Enclosure Material | Anodized aluminum | |
Dimensions (W × D × H) | 131.2 × 27.1 × 134.2 mm (5.2 × 1.1 × 5.3 inches) | |
Weight | 560 g (1.2 lb) | |
Operating Temperature | 0 to 35°C (32 to 95°F) | |
Operating Humidity | 20 to 80% non-condensing | |
Certifications | CE, FCC, IC | |
Software Compatibility | UniFi OS Console | |
Supported Applications | UniFi Network, UniFi Protect, UniFi Access, UniFi Talk, UniFi Connect | |
Camera Support | Up to 20 UniFi Protect cameras; or up to 15 UniFi cameras and 50 UniFi devices in combined mode | |
Management Interface | UniFi Network Controller, UniFi Protect Controller, UniFi Access Controller, UniFi Talk Controller | |
Mounting Options | Desktop, wall mount, or rack mount (optional accessories available) | |
Bluetooth Setup | Yes, for quick initial setup | |
Hybrid Cloud Access | Secure Single Sign-On (SSO) for remote access without third-party cloud services |
