Product Description
|
Specifications
|
||
|---|---|---|

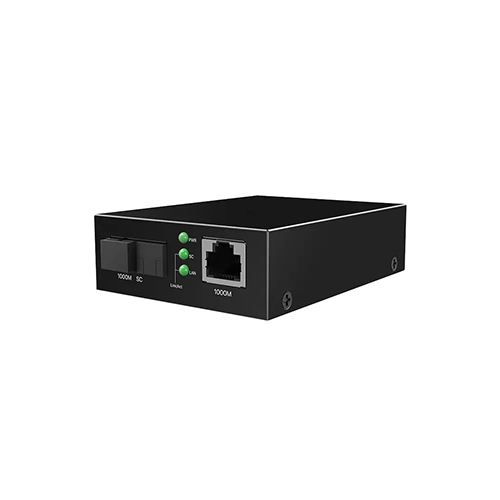

| Model | Tenda TFC300A | |
| Type | Single‑mode fiber media converter (Gigabit) | |
| Data Ports | 1 × RJ‑45 (10/100/1000 Mbps) + 1 × SC single‑mode fiber port (1000 Mbps) | |
| Fiber Wavelengths | Transmit: 1550 nm, Receive: 1310 nm | |
| Max Transmission Distance | Up to approx. 3 km (single‑mode fiber) | |
| Surge/Lightning Protection | 6 kV protection on ports | |
| Operating Temperature | 0 °C to 45 °C | |
| Storage Temperature | ‑40 °C to 70 °C | |
| Operating Humidity | 10‑90% RH (non‑condensing) | |
| Dimensions (L × W × H) | Approximately 95 mm × 72 mm × 26 mm | |
| Power Input | 100‑240 V AC, 50/60 Hz | |
| Use Case / Application | Converts a copper Gigabit Ethernet link to single‑mode fiber for up to ~3 km distance | |
