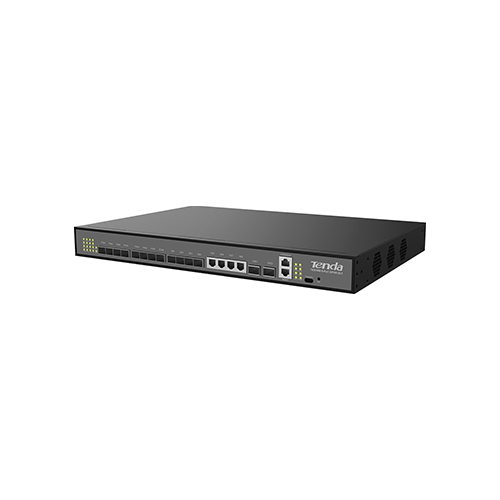

Tenda TES7008 V2.0 8-Port GPON OLT (Single Power Supply) Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | TES7008 V2.0 | |
| Form Factor | 1U 19-inch rack-mounted | |
| PON Ports | 8 × GPON SFP slots | |
| Uplink Ports | 4 × 10/100/1000M Ethernet ports4 × SFP optical ports2 × SFP+ 10G uplink ports | |
| USB Port | 1 × USB Type-C (for serial console and configuration backup) | |
| Management Ports | 1 × 100/1000BASE-T Ethernet port (out-of-band management)1 × Console port | |
| Transmission Distance | Up to 20 km | |
| Bandwidth | Downstream: 2.5 Gbps per portUpstream: 1.25 Gbps per port | |
| Max Splitting Ratio | 1:128 | |
| Optical Wavelength | Forward: 1490 nmReceiving: 1310 nm | |
| Optical Mode | Class B+ / Class C+ | |
| Power Supply | AC: 100V–240V, 47–63HzDC: -48V | |
| Maximum Power Consumption | 58W | |
| Operating Temperature | 0°C to 50°C | |
| Storage Temperature | -40°C to 85°C | |
| Humidity | 5% to 90% (non-condensing) | |
| Dimensions (L×W×H) | 440 mm × 296 mm × 44 mm | |
| Weight | 4.5 kg | |
| Management Protocols | CLI, SNMP, TELNET, SSH, Web Interface | |
| Certifications | CE, RoHS | |
