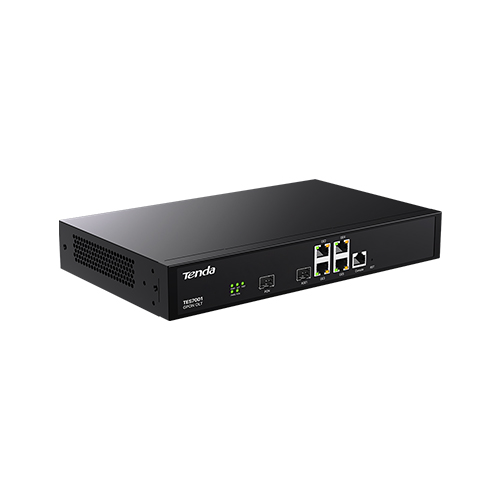

Tenda TES7001 Single Port GPON OLT Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | TES7001 | |
| Product Type | Single Port GPON OLT | |
| Form Factor | Desktop | |
| GPON Port | 1 × GPON Port | |
| Uplink Ports | 1 × 10G SFP/SFP+ Port4 × 1G RJ45 Ports | |
| Console Port | 1 × Console Port | |
| Reset Button | 1 × Reset Button | |
| LED Indicators | 2 × PWR (Power)1 × ACT (Activity)1 × PON (PON Status)1 × XGE (10G Uplink Status) | |
| Standards Supported | ITU G.984.x, ITU G.988 | |
| Optical Mode | ITU-T G.984.2 Class B+/C+/C++ | |
| Optical Wavelength | TX: 1490nm (Continuous Mode)RX: 1310nm (Burst Mode) | |
| Transmission Distance | Up to 20 km | |
| Bandwidth | Downstream: 2.488 GbpsUpstream: 1.244 Gbps | |
| ONU Access | Supports up to 128 ONUs | |
| VLAN Support | Supports 512 concurrent VLANsVLAN Transparent/Tag/Trunk modes | |
| IGMP Support | Supports IGMPv2/IGMPv3Supports IGMP SnoopingSupports up to 512 multicast groups | |
| Flow Control | IEEE 802.3x Flow Control | |
| Port Features | Port Rate LimitingPort MirroringPort Statistics and Monitoring | |
| DBA Support | Supports Tcont DBA (Dynamic Bandwidth Allocation)Minimum configuration bandwidth: 128 kbit/s (granularity: 64 kbit/s) | |
| System Management | Standard OMCI Management FunctionSupports in-band and out-of-band managementSupports CLI and Web-based Network ManagementSupports batch ONT remote upgrade | |
| Optical Power Detection | Supports uplink port optical parameter detectionSupports PON port optical parameter detectionSupports batch ONT optical parameter detection | |
| Redundancy | Dual power redundancy backup | |
| Link Monitoring | Supports monitoring of optical link indexSupports data flow statistics of all service portsAuto alarm when link index degrades | |
| Operating Temperature | -20°C to +55°C | |
| Storage Temperature | -40°C to +70°C | |
| Operating Humidity | 10% to 95% (Non-condensing) | |
| Storage Humidity | 5% to 95% (Non-condensing) | |
| Power Supply | Dual AC (100–240V) | |
| Power Consumption | ≤13W | |
| Certifications | CE, RoHS | |
| Dimensions (L×W×H) | 294 × 180 × 44 mm | |
