Product Description
|
Specifications
|
||
|---|---|---|

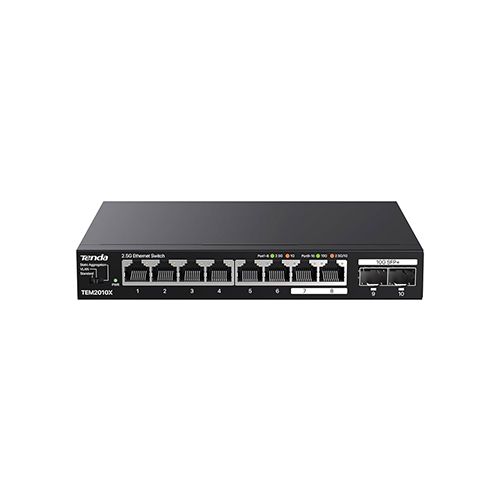

| Model | Tenda TEM2010X | |
| Ports | 8 × 2.5G RJ-45 Ethernet ports2 × 10G SFP+ slots | |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3bz, 802.3ae, 802.3z | |
| Switching Capacity | 80 Gbps | |
| Forwarding Rate | 59.5 Mpps | |
| MAC Address Table | 16K entries | |
| Transmission Media | CAT5e or better UTP/STP cables recommended | |
| Housing | Metal enclosure | |
| Protection | 6 kV lightning and surge protection on all ports | |
| Mounting Options | Desktop or wall-mount | |
| Power Input | 100–240V AC, 50/60Hz | |
| Power Consumption | < 12W (maximum) | |
| Operating Temperature | 0°C to 40°C | |
| Storage Temperature | -40°C to 70°C | |
| Operating Humidity | 10%–90% RH (non-condensing) | |
| Storage Humidity | 5%–90% RH (non-condensing) | |
| Certifications | FCC, CE, RoHS, UKCA | |
| Special Features / Modes | – Standard Mode: All ports communicate freely – VLAN Mode: Ports 1–6 are isolated; all can communicate with ports 7–10 – Static Aggregation Mode: Supports port aggregation for higher throughput (e.g., dual-port NAS setup) | |
| Ideal For | Multi-Gig networks (Wi-Fi 6/7 APs, NAS, gaming PCs, 10G uplinks in SMB/home setups) | |
