Product Description
|
Specifications
|
||
|---|---|---|

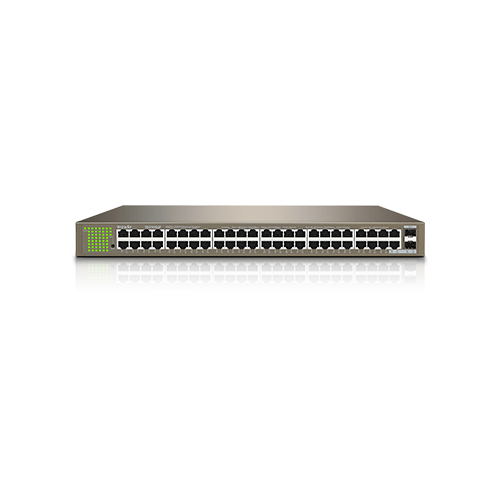

| Product Name | Tenda TEG1050F 48-Port Gigabit + 2 SFP Unmanaged Ethernet Switch | |
| Model / Version | TEG1050F | |
| Ports | 48 × 10/100/1000 Mbps RJ-45 ports (Auto MDI/MDIX) 2 × 1000 Mbps SFP slots (Independent) | |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z | |
| Switching Capacity | 100 Gbps | |
| Forwarding Rate | 74.4 Mpps | |
| MAC Address Table | 16,000 entries | |
| Buffer Memory | 12 MB | |
| Jumbo Frame Support | 12 KB | |
| LED Indicators | Power, Link/Activity (per port), VLAN mode indicator | |
| Mounting Options | Desktop, Wall-Mount, Rack-Mount (1U) | |
| Dimensions | 440 × 240 × 44 mm (L × W × H) | |
| Housing Material | Metal | |
| Power Supply | Input: 100–240V AC 50/60Hz Output: 12V 4A (Internal power supply) | |
| Power Consumption | Max: <48W | |
| Operating Temperature | 0°C to 45°C | |
| Operating Humidity | 10% to 90% RH (non-condensing) | |
| Certifications | CE, FCC, RoHS | |
| Key Features | Plug-and-Play (Unmanaged), Auto MDI/MDIX, Fanless, Metal Housing, One-Key VLAN | |
