Product Description
|
Specifications
|
||
|---|---|---|

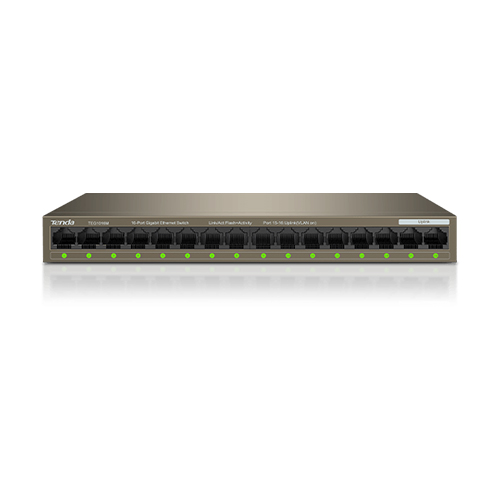

| Product Name | Tenda TEG1016M 16‑Port Gigabit Ethernet Switch | |
| Model / Version | TEG1016M V2.1 | |
| Ports | 16 × RJ‑45 10/100/1000 Mbps (Auto-Negotiation, Auto MDI/MDIX) | |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab | |
| Switching Capacity | 32 Gbps | |
| Forwarding Rate | 23.8 Mpps | |
| MAC Address Table | 8,000 entries | |
| Buffer Memory | 2 MB | |
| Jumbo Frame Support | Not specified | |
| LED Indicators | 1 × Power LED, 16 × Link/Act LEDs (one per port) | |
| Mounting Options | Desktop or Wall-Mount | |
| Dimensions | 235 × 103 × 27 mm (L × W × H) | |
| Housing Material | Metal | |
| Power Supply | Input: 100–240V AC 50/60Hz, 0.4A Output: 12V 1A (External power adapter) | |
| Power Consumption | Max: <12W | |
| Operating Temperature | 0°C to 40°C | |
| Operating Humidity | 10% to 90% RH (non-condensing) | |
| Certifications | CE, FCC, RoHS | |
| Key Features | Plug-and-Play (Unmanaged), Auto MDI/MDIX, Fanless, Compact Design | |
