Product Description
|
Specifications
|
||
|---|---|---|

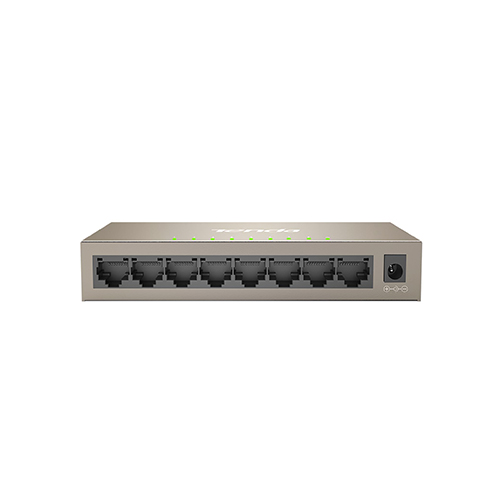

| Product Name | Tenda TEG1008M V3.0 8‑Port Gigabit Ethernet Switch | |
| Model / Version | TEG1008M V3.0 | |
| Ports | 8 × RJ‑45 10/100/1000 Mbps (Auto-Negotiation, Auto MDI/MDIX) | |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab | |
| Switching Capacity | 16 Gbps | |
| Forwarding Rate | 14.88 Mpps (10 Mbps), 148.8 Mpps (100 Mbps), 1.488 Mpps (1 Gbps) | |
| MAC Address Table | 4,000 entries | |
| Buffer Memory | 192 KB | |
| Jumbo Frame Support | Not specified | |
| LED Indicators | 1 × Power LED, 8 × Link/Act LEDs (one per port) | |
| Mounting Options | Desktop or Wall-Mount | |
| Dimensions | 140 × 66.5 × 25.3 mm (L × W × H) | |
| Housing Material | Metal | |
| Power Supply | Input: 190–240V AC 50/60Hz Output: 9–12V DC (External power adapter) | |
| Power Consumption | Max: <5W | |
| Operating Temperature | 0°C to 40°C | |
| Operating Humidity | 10% to 90% RH (non-condensing) | |
| Certifications | CE, FCC, RoHS | |
| Key Features | Plug-and-Play (Unmanaged), Auto MDI/MDIX, Fanless, Compact Design | |
