Product Description
|
Specifications
|
||
|---|---|---|

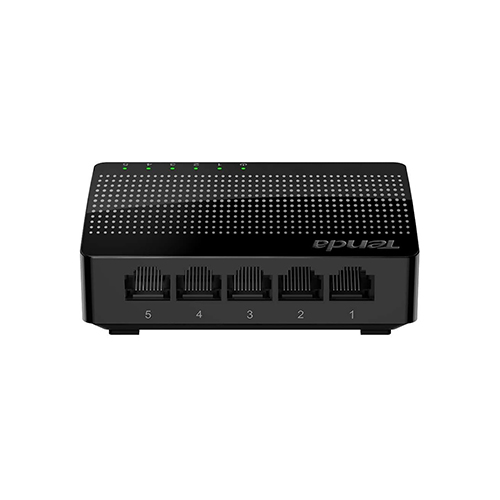

| Product Name | Tenda SG105M 5‑Port Gigabit Ethernet Switch | |
| Model / Version | SG105M V1.0 | |
| Ports | 5 × RJ‑45 10/100/1000 Mbps (Auto-Negotiation, Auto MDI/MDIX) | |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab | |
| Switching Capacity | 10 Gbps | |
| Forwarding Rate | 7.44 Mpps (Million packets per second) | |
| MAC Address Table | 2,000 entries | |
| Buffer Memory | 1 Mb | |
| Jumbo Frame Support | Up to 15,000 bytes | |
| LED Indicators | 1 × Power LED, 5 × Link/Act LEDs (one per port) | |
| Mounting Options | Desktop or Wall-Mount | |
| Dimensions | 82 × 52 × 22 mm (L × W × H) | |
| Housing Material | Plastic | |
| Power Supply | External Adapter (Input: 100–240V AC, Output: 5V / 0.6A) | |
| Power Consumption | < 1.7 W | |
| Operating Temperature | 0°C to 45°C | |
| Operating Humidity | 10% to 90% RH (non-condensing) | |
| Certifications | CE, FCC, RoHS | |
| Key Features | Plug-and-Play (Unmanaged), Auto MDI/MDIX, Fanless, Compact Design | |
