Product Description
|
Specifications
|
||
|---|---|---|

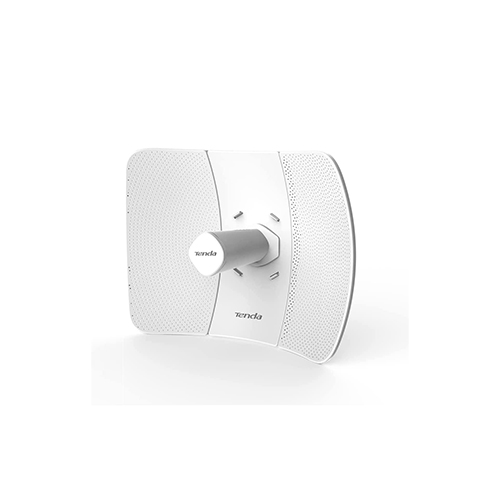

| Model | Tenda O8 | |
| Frequency Band | 5 GHz | |
| Wireless Standard | IEEE 802.11a / 802.11n / 802.11ac | |
| Maximum Wireless Rate | Up to ~433 Mbps | |
| Antenna Gain | 23 dBi directional (vertical polarization) | |
| Antenna Beamwidth | Approx. 10° horizontal and/or vertical (narrow beam) | |
| Ethernet Interface | 1 × 10/100 Mbps RJ‑45 port | |
| Power Supply / PoE Support | Passive PoE supported (voltage range roughly 9‑35 V DC) or 12V DC adapter | |
| Power Consumption | Approx. 5.5 W | |
| Outdoor Protection Rating | IP65 | |
| Lightning / Surge Protection | 6,000 V surge protection | |
| Mounting Options | Pole mount (or wall‑mount under bracket) | |
| Operating Modes | AP / Station / WISP / PtP (Point‑to‑Point) / PtMP (Point‑to‑Multipoint) / WDS Repeater / Router | |
| Range (Line‑of‑Sight) | Up to ~20 km under ideal conditions | |
| Operating Temperature Range | –30 °C to +60 °C | |
| Storage Temperature | –40 °C to +70 °C | |
| Default Configuration | IP: 192.168.2.1 ; Username: admin ; Password: admin | |
