Product Description
| Specifications | ||
|---|---|---|

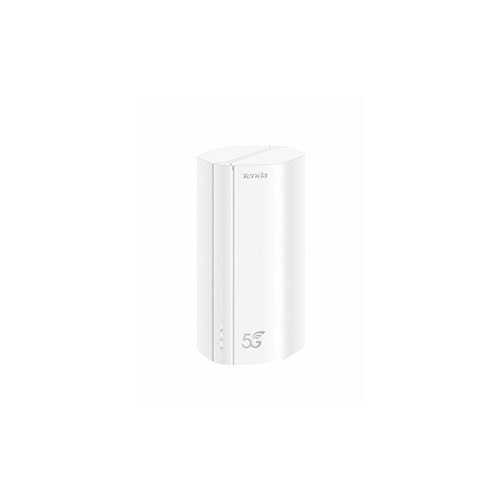

| Model | Tenda 5G01 AX1500 Wi‑Fi 6 5G NR Router | |
| Cellular Network Support | 5G NR (SA/NSA) + 4G LTE + 3G WCDMA | |
| Peak 5G Download Speed | Up to approx. 2.0 Gbps in SA mode, 2.2 Gbps in NSA mode | |
| Peak 5G Upload Speed | Up to approx. 1.0 Gbps in SA mode, ~575 Mbps in NSA mode | |
| Supported 5G Bands | SA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n66, n77, n78 NSA: n1, n3, n7, n38, n40, n41, n66, n77, n78 | |
| Supported 4G Bands | FDD LTE: 1, 2, 3, 4, 5, 7, 8, 20, 28 TDD LTE: 38, 40, 41, 66 | |
| Wi‑Fi Standard | 802.11ax (WiFi 6) with dual‑band (2.4 GHz + 5 GHz) | |
| Wi‑Fi Speeds | 2.4 GHz: up to ~300 Mbps 5 GHz: up to ~1201 Mbps | |
| Ethernet Ports | 1 × Gigabit RJ‑45 WAN/LAN port 1 × Gigabit RJ‑45 LAN port | |
| SIM Slot | 1 × Nano‑SIM (4FF) | |
| Antennas | 4 × internal antennas for 5G/4G/3G 2 × internal antennas for WiFi | |
| Dual WAN/Internet Sources | Supports 5G/4G via SIM or wired Ethernet WAN | |
| Mesh/Expansion Support | Supports Tenda “WiFi+” Mesh (so you can add compatible mesh nodes) | |
| Security | WPA3‑SAE / WPA2‑PSK, Guest WiFi, IPv4/IPv6 dual stack | |
| Operating Environment | Operating temperature ~0 °C to ~40 °C Storage temperature ~‑30 °C to ~70 °C | |
| Use Case | High‑speed mobile broadband, portable/fixed hybrid router, homes/offices | |
