Product Description
|
Specifications
|
||
|---|---|---|

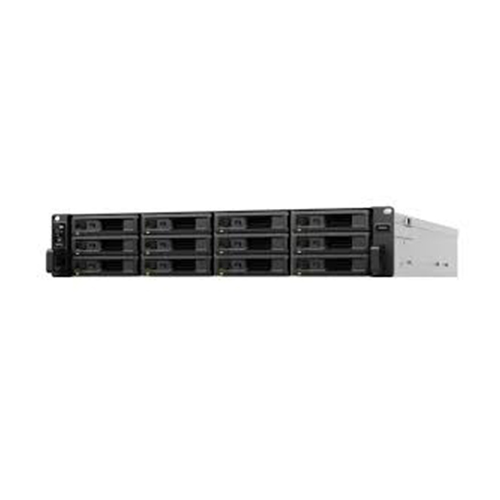

| Model | SA3610 | |
| Form Factor | Rackmount 2U | |
| Drive Bays | 12 x 3.5″/2.5″ SAS/SATA HDD/SSD | |
| Maximum Storage Capacity | Up to 96 drives (with 7 x RX1222sas expansion units), supporting up to 1.9 PB of storage | |
| Processor | Intel Xeon D-1567, 12-core, 2.1 GHz (Turbo up to 2.7 GHz) | |
| Memory | 16 GB DDR4 ECC RDIMM (expandable up to 128 GB) | |
| Networking Ports | 4 x 1GbE RJ-45, 2 x 10GbE RJ-45 | |
| USB Ports | 2 x USB 3.2 Gen 1 | |
| Expansion Slots | 2 x PCIe 3.0 Gen3 x8 | |
| Expansion Ports | 1 x Mini-SAS HD | |
| Power Supply | 2 x 550W redundant, hot-swappable | |
| Cooling | 4 x 80mm system fans | |
| Operating Temperature | 0°C to 35°C | |
| Storage Temperature | -20°C to 60°C | |
| Humidity | 5% to 95% RH | |
| Certifications | FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL | |
| Warranty | 5-year limited warranty | |
| Dimensions (HxWxD) | 88 mm x 482 mm x 724 mm | |
| Weight | 14.5 kg | |
