Product Description
|
Specifications
|
||
|---|---|---|

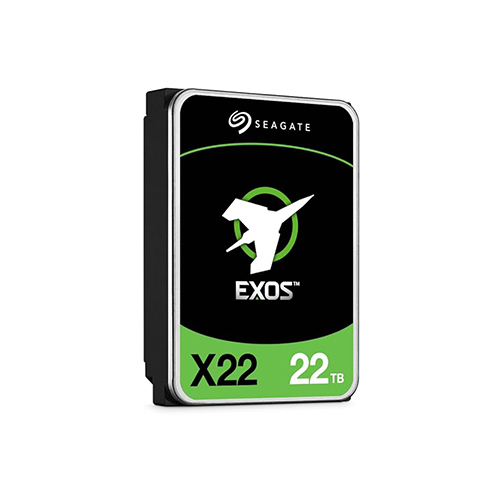

| Model | Seagate Exos X22 ST22000NM001E | |
| Capacity | 22 TB | |
| Form Factor | 3.5-inch | |
| Interface | SATA III (6 Gb/s) | |
| Recording Technology | Conventional Magnetic Recording (CMR) | |
| Cache Size | 512 MB | |
| Rotational Speed | 7200 RPM | |
| Max Sustained Transfer Rate | 285 MB/s (external) | |
| Internal Data Rate | 272 MB/s | |
| Random Read IOPS (4K QD16) | 168 IOPS | |
| Random Write IOPS (4K QD16) | 550 IOPS | |
| Average Latency | 4.16 ms | |
| Mean Time Between Failures | 2.5 million hours | |
| Annualized Failure Rate (AFR) | 0.35% | |
| Workload Rate Limit (WRL) | 550 TB/year | |
| Power-On Hours per Year | 8,760 | |
| Startup Current (12V) | 1.8 A | |
| Average Operating Power | 6.4 W | |
| Idle Power Consumption | 5.74 W | |
| Standby/Sleep Power | 0.8 W | |
| Operating Temperature | 5°C to 60°C | |
| Non-operating Temperature | -40°C to 70°C | |
| Operating Shock | 40 G / 2.0 ms | |
| Storage Shock | 200 G / 2.0 ms | |
| Operating Vibration | 2.27 G / 2 to 500 Hz | |
| Storage Vibration | 2.27 G / 2 to 500 Hz | |
| Acoustics (Idle) | 23 dBA | |
| Acoustics (Seek) | 27 dBA | |
| Dimensions (L x W x H) | 147 mm x 101.85 mm x 26.11 mm | |
| Weight | 680 g | |
