Product Description
Feature | Specification |
---|---|

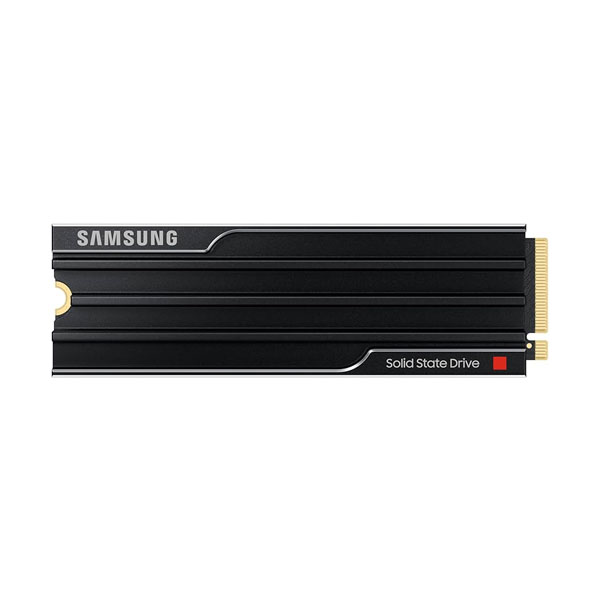

Model Code | MZ-VAP2T0CW |
Series | 9100 PRO with Heatsink |
Capacity | 2TB |
Form Factor | M.2 2280 with Heatsink (8.8mm thickness) |
Interface | PCIe Gen 5.0 x4, NVMe 2.0 |
NAND Flash | Samsung V-NAND TLC (236-layer) |
Controller | Samsung In-house 5nm Controller |
Cache Memory | 2GB LPDDR4X SDRAM |
Sequential Read Speed | Up to 14,800 MB/s |
Sequential Write Speed | Up to 13,400 MB/s |
Random Read (4KB, QD32) | Up to 2,200,000 IOPS |
Random Write (4KB, QD32) | Up to 2,600,000 IOPS |
Encryption Support | AES 256-bit (Class 0), TCG/Opal v2.0, IEEE1667 |
TRIM Support | Yes |
S.M.A.R.T Support | Yes |
Garbage Collection | Auto Garbage Collection Algorithm |
Device Sleep Mode Support | Yes |
Power Consumption (Active) | Read: Avg 7.6W / Write: Avg 7.2W |
Power Consumption (Idle) | Max 4.0 mW |
Power Consumption (Sleep) | Max 3.3 mW |
Operating Temperature | 0°C to 70°C |
Shock Resistance | 1,500 G & 0.5 ms (Half sine) |
Dimensions (W x H x D) | 80.15 x 22.15 x 8.8 mm (with Heatsink) |
Weight | Max 30.0g |
MTBF | 1.5 Million Hours |
Endurance (TBW) | 1,200 TBW |
Software Support | Samsung Magician, Data Migration Software |
Warranty | 5-Year Limited Warranty or 1,200 TBW |
