Product Description
| Attribute | Details |
|---|---|

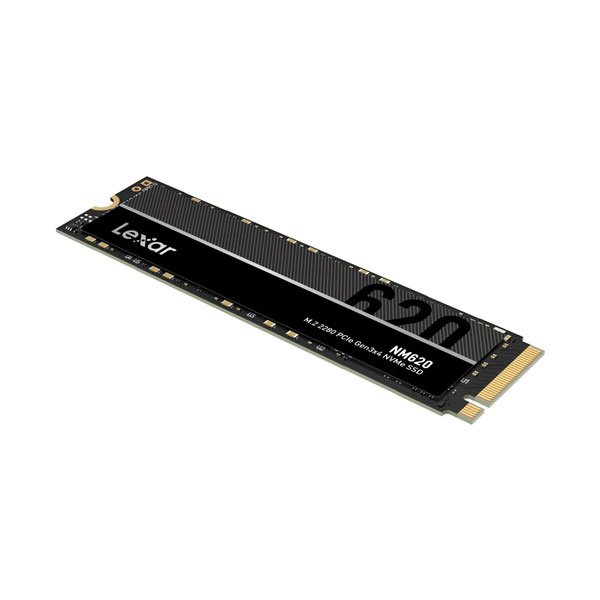

| Model | LNM620X512G-RNNNG |
| Series | NM620 |
| Capacity | 512GB |
| Interface | PCIe Gen3x4 |
| Form Factor | M.2 2280 |
| Sequential Read Speed | Up to 3500 MB/s |
| Sequential Write Speed | Up to 2400 MB/s |
| Random Read IOPS | Up to 300,000 |
| Random Write IOPS | Up to 256,000 |
| NAND Type | 3D TLC NAND |
| Controller | DRAM-less (Silicon Motion SM2263XT or equivalent) |
| DRAM Cache | No (uses Host Memory Buffer) |
| SLC Caching | Yes (Dynamic SLC Cache) |
| Endurance (TBW) | ~250 TBW |
| MTBF | 1.5 million hours |
| Operating Temperature | 0°C to 70°C |
| Power Consumption | Low power design |
| Heatsink | Not included |
| Compatibility | Laptops, Desktops with M.2 NVMe slot |
| Warranty | 5-Year Limited Warranty |
