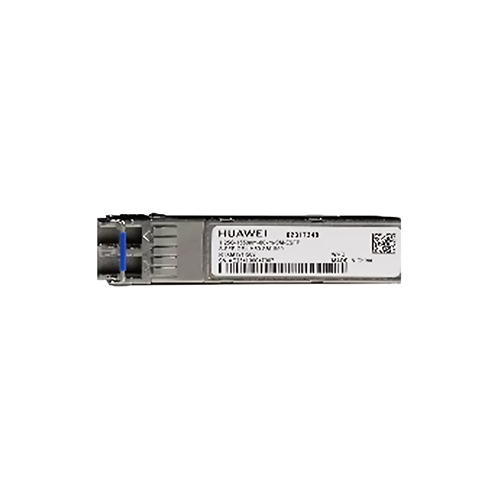

Huawei S-SFP-GE-LH80-SM1550 Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC) Price in Dubai UAE
Huawei S-SFP-GE-LH80-SM1550 Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC) Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Product Name | Huawei S-SFP-GE-LH80-SM1550 Optical Transceiver | |
| Part Number | 02317348 | |
| Form Factor | eSFP (enhanced Small Form-factor Pluggable) | |
| Data Rate | 1.25 Gbps (Gigabit Ethernet) | |
| Wavelength | 1550 nm | |
| Distance | Up to 80 km over single-mode fiber (SMF) | |
| Connector Type | LC Duplex | |
| Digital Monitoring | Yes (DDM/DOM supported) | |
| Operating Temperature | 0°C to 70°C | |
| Power Consumption | Typically < 0.85 W | |
| Compliance | Compliant with SFP MSA, SFF-8472, and RoHS standards | |
| Transmission Power Range | -2.0 dBm to +5.0 dBm | |
| Receiver Sensitivity | -23 dBm | |
| Overload Protection | -3.0 dBm | |
| Extinction Ratio | Minimum 9 dB | |
| Applications | Ideal for long-distance Gigabit Ethernet (1000BASE-ZX) networks, data centers, and campus networks | |
| Compatibility | Designed for Huawei CloudEngine switches (V200R020C00 and later versions) | |
