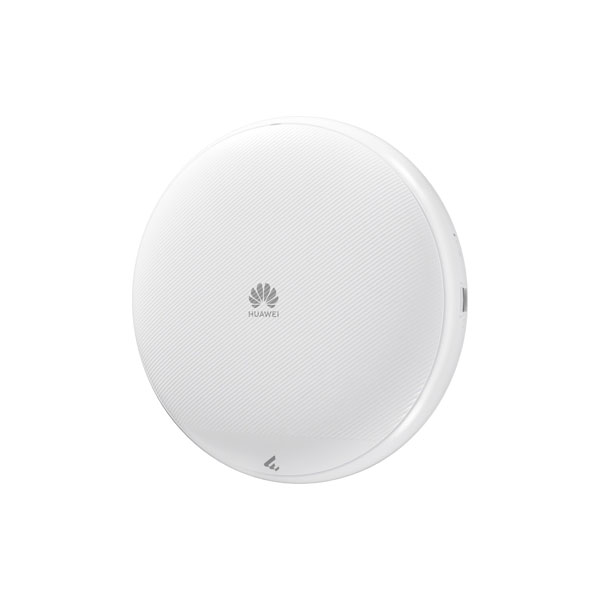

Huawei AP673 Wireless LAN Equipment AP WiFi7 Tri-Band 2×2+4 MIMO Indoor RJ45x2 USB BLE Smart Antenna Price in Dubai UAE
Huawei AP673 Wireless LAN Equipment AP WiFi7 Tri-Band 2×2+4 MIMO Indoor RJ45x2 USB BLE Smart Antenna Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | Huawei eKitEngine AP673 | |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) | |
| Frequency Bands | Tri-Band: 2.4 GHz, 5 GHz, and 6 GHz | |
| MIMO Configuration | 2×2 MIMO (2.4 GHz & 5 GHz), 4×4 MIMO (6 GHz) | |
| Maximum Data Rate | Up to 13.66 Gbps | |
| Antenna Gain | – 2.4 GHz: 4 dBi per chain (2 dBi combined) – 5 GHz: 5 dBi per chain (3 dBi combined) – 6 GHz: 5 dBi per chain (3 dBi combined) |
|
| Maximum Transmit Power | – 2.4 GHz: 23 dBm (combined) – 5 GHz: 23 dBm (combined) – 6 GHz: 26 dBm (combined) – BLE: <10 dBm |
|
| Power Supply | – IEEE 802.3af/at PoE – DC 12V ±10% |
|
| Maximum Power Consumption | 21.1 W (excluding USB) | |
| USB Port | USB 3.0 (currently unavailable; future support via software upgrade) | |
| Bluetooth | BLE 5.2 | |
| Management Options | – Local: EasyWeb, Wireless Access Controller (WAC) – Remote: Huawei eKit App, SNC platform |
|
| Mounting Options | Wall, Ceiling, T-Rail | |
| Dimensions | Diameter: 220 mm Height: 45 mm |
|
| Weight | 0.745 kg (without packaging) | |
| Operating Temperature | 0°C to 40°C | |
| Storage Temperature | –40°C to +70°C | |
| Humidity | 5% to 95% (non-condensing) | |
| User Capacity | Supports up to 1,024 users (recommended for up to 300 users) | |
| Security Protocols | WPA3, WPA2, 802.1X | |
| Advanced Features | – 320 MHz bandwidth on 6 GHz band – 4096-QAM – Multi-Link Operation (MLO) – Enhanced MU-MIMO – Multi-AP coordination – Smart antenna array technology – Intelligent switchover algorithm – 3G/LTE filter (ACC) |
|
