Product Description
|
Specifications
|
||
|---|---|---|

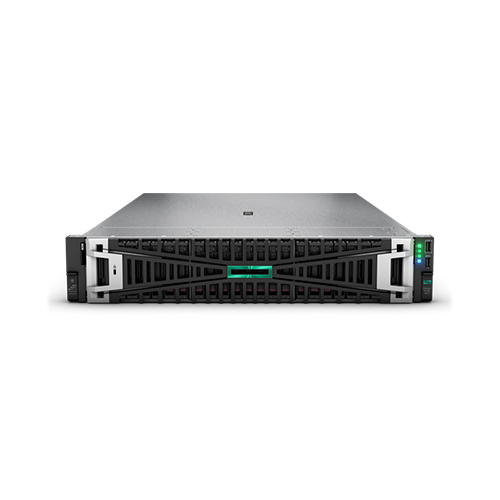

| Product Name | HPE ProLiant DL380 Gen11 | |
| Product Code / SKU | P70456‑421 | |
| Form Factor | 2U Rack Server | |
| Processor | Intel Xeon Silver 4509Y | |
| Processor Speed | 2.6 GHz Base | |
| Processor Cores | 8 Cores | |
| Processor Cache | 16 MB L3 | |
| Number of Processors | 1 | |
| Chipset | Intel C662 / Gen11 Platform | |
| Memory Installed | 32 GB DDR5 ECC Registered | |
| Memory Slots | Up to 32 DIMM slots | |
| Maximum Memory | Up to 4 TB | |
| Internal Drive Bays | 8 × 2.5″ SFF Hot-Plug | |
| Included Storage | Not included (supports SAS/SATA/NVMe drives) | |
| Storage Controller | HPE MR408i‑o Gen11 with 4 GB Cache, 8x PCIe Lanes | |
| RAID Support | RAID 0, 1, 5, 10, 50, 6, 60 | |
| Hot-Plug Support | Yes | |
| Network Controller | Broadcom BCM5719, 4 × 1 Gb Ethernet ports | |
| USB Ports | Multiple USB 3.2 Gen1 & USB 2.0 | |
| Video Ports | VGA & DisplayPort | |
| Expansion Slots | PCIe Gen5 (configuration dependent) | |
| Power Supply | 1000 W Platinum Hot-Plug PSU | |
| Redundant PSU Support | No (single PSU included) | |
| Cooling | High-efficiency 2U fans | |
| Management | HPE iLO 6 | |
| Security | TPM 2.0, UEFI Secure Boot, Silicon Root of Trust | |
| Warranty (Typical) | 3‑Year Parts, 1‑Year Onsite Support | |
| Use Case | Enterprise / SMB Virtualization, Databases, Mixed Workloads | |
