Product Description
|
Specifications
|
||
|---|---|---|

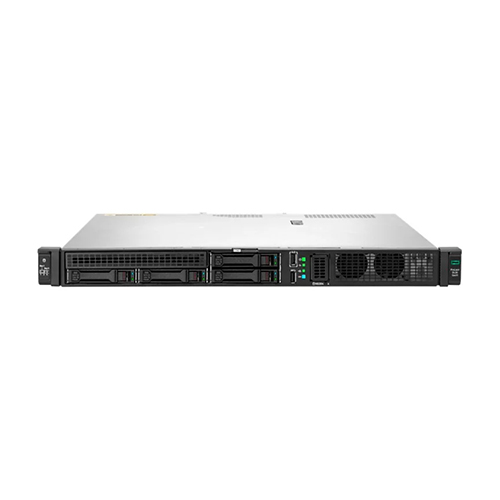

| Product Name | HPE ProLiant DL20 Gen11 | |
| Product Code / SKU | P65393‑421 | |
| Form Factor | 1U Rack Server | |
| Processor | Intel Xeon E‑2414 | |
| Processor Speed | 2.6 GHz Base | |
| Processor Cores | 4 (Quad-Core) | |
| Processor Cache | 12 MB L3 | |
| Number of Processors | 1 | |
| Chipset | Intel C262 | |
| Memory Installed | 16 GB DDR5 ECC Registered | |
| Memory Slots | 2 DIMM slots | |
| Maximum Memory | Up to 64 GB | |
| Internal Drive Bays | 2 × 3.5″ LFF Non-Hot-Plug | |
| Storage Interface | SATA III | |
| Supported RAID | Software RAID via Intel/OS | |
| RAID Levels | 0, 1 (software) | |
| Network Controller | Broadcom BCM5719, 4 × 1 Gb Ethernet ports | |
| USB Ports | Multiple USB 3.2 Gen1 & USB 2.0 | |
| Video Ports | VGA | |
| Expansion Slots | 1 × PCIe Gen5 slot | |
| Power Supply | 290 W Platinum PSU | |
| Redundant PSU Support | No | |
| Cooling | Standard 1U fans | |
| Management | HPE iLO 6 | |
| Security | TPM 2.0, UEFI Secure Boot | |
| Warranty (Typical) | 3‑Year Parts, 1‑Year Onsite Support | |
| Use Case | Small / Medium Rack Deployment, Edge, Lightweight Server Workloads | |
