Product Description
|
Specifications
|
||
|---|---|---|

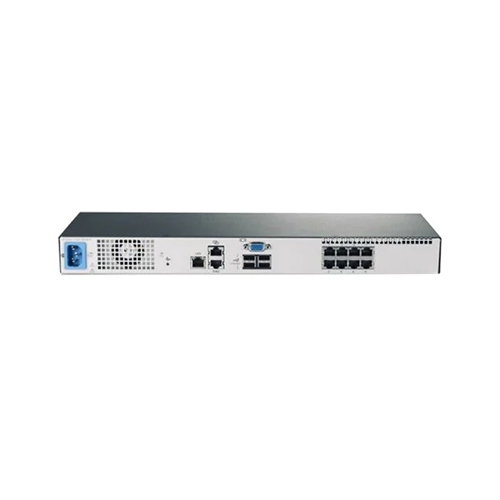

| Product Name | HPE 0x1x8 G3 KVM Console Switch | |
| Part Number (SKU) | AF651A | |
| Product Type | KVM Console Switch | |
| Switch Configuration | 0x1x8 (1 local user × 8 server ports) | |
| Server Ports | 8 KVM ports | |
| User Support | 1 local user | |
| Maximum Supported Servers (Cascaded) | Up to 256 servers | |
| Video Support | Up to 1280 × 1024 resolution | |
| Keyboard / Mouse Interface | USB | |
| Management Interface | On‑Screen Display (OSD) | |
| Cable Type Included | CAT5 KVM cables (adapter provided) | |
| Expansion / Cascading | Cascadable via RJ‑45 | |
| Rack Mounting | 1U rack mount or zero‑U side rail mount | |
| Power Input | 100–240 V AC | |
| Power Consumption | ~20 W | |
| Form Factor | Rack‑mountable 1U KVM switch | |
| Operating Temperature | 0 °C to 50 °C | |
| Storage Temperature | ‑20 °C to 60 °C | |
| Humidity (Operating) | 20 % to 80 % non‑condensing | |
| Weight | ~2.04 kg | |
| Dimensions (Approx.) | Height ~4.36 cm × Width ~43.8 cm × Depth ~16.5 cm | |
| Usage Environment | Data center / enterprise IT infrastructure | |
| Condition | New | |
| Manufacturer | Hewlett Packard Enterprise (HPE) | |
| Warranty | Standard OEM warranty | |
