Product Description
| Attribute | Description |
|---|---|

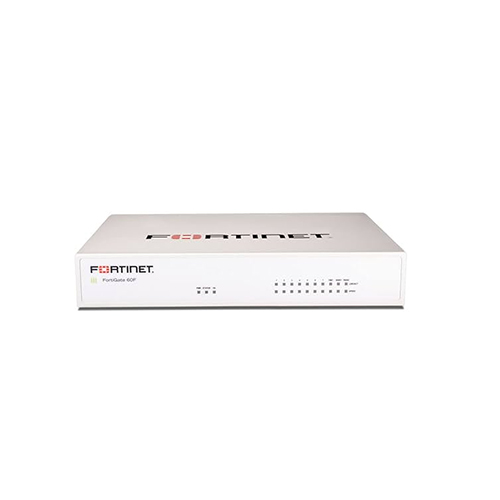

| Model Name | FortiGate FG-60F-BDL-950-60 |
| Bundle | Hardware + 5-Year 24×7 FortiCare & FortiGuard UTP (Unified Threat Protection) |
| Recommended Use | Small to mid-sized businesses, branch offices |
| Form Factor | Desktop, fanless |
| Interfaces / Ports | 10x GE RJ45 (7x internal, 2x WAN, 1x DMZ) 1x Console Port 1x USB Port |
| Firewall Throughput | 10 Gbps |
| Threat Protection Throughput | 700 Mbps |
| NGFW Throughput | 1.0 Gbps |
| IPS Throughput | 1.4 Gbps |
| SSL Inspection Throughput | 750 Mbps |
| Concurrent Sessions | 700,000 |
| New Sessions per Second | 35,000 |
| VPN Throughput (IPSec) | 6.5 Gbps |
| SSL VPN Throughput | 900 Mbps |
| Max VPN Tunnels | 200 Site-to-Site 500 Client (IPSec) 200 Client (SSL VPN) |
| Security Features (UTP) | – Antivirus – IPS – Application Control – Web Filtering – Anti-Spam – Botnet/IP Reputation – SSL Inspection – DNS Filtering |
| Management | FortiOS (GUI/CLI) Centralized via FortiManager and FortiAnalyzer |
| Power Supply | External AC adapter (100–240V, 50–60 Hz) |
| Power Consumption (Typical) | ~17 Watts |
| Heat Dissipation | ~63 BTU/hr |
| Dimensions (W x D x H) | 216 x 160 x 38 mm |
| Weight | 0.9 kg (approx.) |
| Operating Temperature | 0°C to 40°C |
| Humidity | 10% to 90% non-condensing |
| Certifications | FCC, CE, UL/cUL, CB, VCCI, ICSA (Firewall, IPS, VPN) |
| Mounting Options | Desktop or wall-mount |
| Key Highlights | – High performance in a compact form – 5-year complete security coverage – Fanless, silent operation – Strong VPN and SSL performance |
