Product Description
| Feature | Description |
|---|---|

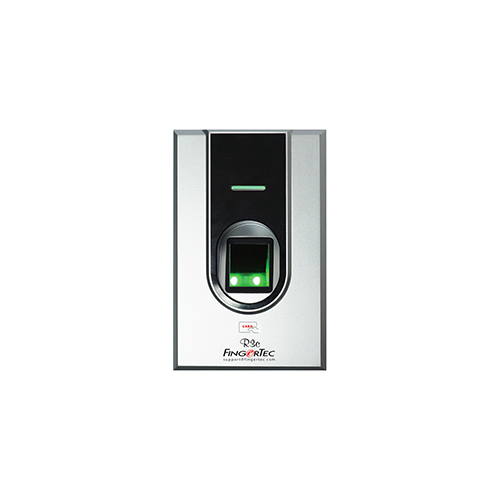

| Product Name | FingerTec R3C |
| Type | IP65-Rated Slave Fingerprint Access Control Terminal |
| Verification Methods | Fingerprint, RFID Card, Password |
| Fingerprint Capacity | 3,000 templates |
| Card Capacity | 10,000 cards |
| Transaction Storage | Controlled by Master (No local storage) |
| Identification Speed | < 1 second |
| Display | No display (LED indicators for status) |
| Communication | RS485 (connects to Master Terminal such as R3) |
| Ingress Protection | IP65 (Water & Dust Resistant – Suitable for Outdoor Installation) |
| Power Supply | Powered by Master Unit |
| Door Relay Output | None (controlled by Master) |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 20% – 80% |
| Dimension (L x W x H) | 79 mm x 79 mm x 28 mm |
| Weight | Approx. 185 g |
| Optional Features | Used as Slave Unit for FingerTec R3 or Similar Controllers |
| Software Compatibility | Ingress, TCMS V3 (via Master Terminal) |
| Certifications | CE, FCC |
