Product Description
Category | Details |
---|---|

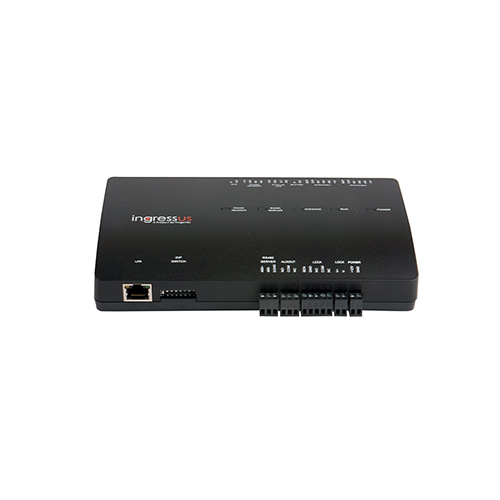

Model | FingerTec Ingressus I |
Type | 1-Door Access Controller |
Supported Doors | 1 |
Authentication Methods | Fingerprint, Card, Password, Combination |
Capacity | 3,000 Fingerprints, 30,000 Users, 100,000 Transaction Logs |
Slave Terminals | Up to 2 devices (RS-485 or Wiegand readers) |
Communication | TCP/IP, RS-485 |
Inputs | 1 Door Sensor, 1 Exit Button, 1 Auxiliary Input |
Outputs | 1 Door Lock Relay (12VDC, 10A), 1 Auxiliary Relay (30VDC, 2A) |
Security Features | Anti-passback, Duress Alarm, Door Forced Alarm, Interlock (multi-door), Time Zone Control |
Processor | 32-bit, 400 MHz |
Memory | 128 MB Flash, 32 MB SDRAM |
Software | Ingress (Windows-based centralized management) |
Power Supply | 12V DC |
Dimensions | 186 × 106 × 36 mm |
Operating Temp | 0°C – 55°C |
Operating Humidity | 10% – 80% RH |
Protection | Over-current, Over-voltage, Reverse Polarity |
