Specifications
|
||
|---|---|---|

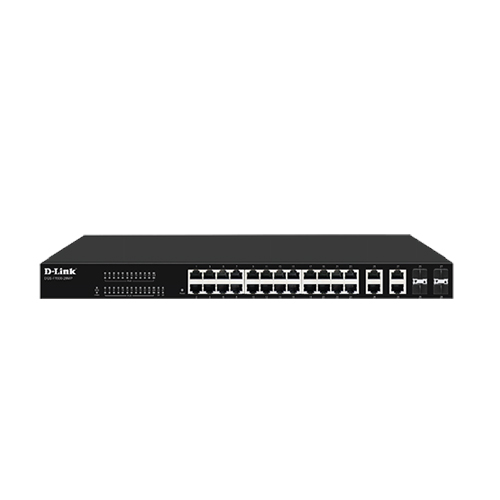

| Model | D-Link DGS-F1500-28MP | |
| Product Type | 24-Port Gigabit PoE Managed Switch | |
| Total Ports | 28 Ports | |
| Ethernet Ports | 24 × 10/100/1000 Mbps RJ-45 Ports with PoE | |
| SFP+ Uplink Ports | 4 × 1G/10G SFP+ Uplink Ports | |
| PoE Support | Yes | |
| PoE Standard | IEEE 802.3af/at | |
| Total PoE Budget | 400W | |
| Switching Capacity | 128 Gbps | |
| Forwarding Rate | 95.23 Mpps | |
| MAC Address Table | 16K Entries | |
| Packet Buffer | 4.1 MB | |
| VLAN Support | 802.1Q VLAN (up to 4094 VLANs) | |
| Management | Web-based GUI, CLI, SNMP, RMON, Telnet, SSH | |
| Security Features | Port Security, Storm Control, DHCP Snooping, Access Control Lists (ACL) | |
| QoS Features | 8 Queues per Port, 802.1p, DSCP | |
| Layer 2 Features | STP, RSTP, MSTP, Link Aggregation (LACP) | |
| Layer 3 Features | Static Routing, DHCP Relay | |
| Operating Temperature | 0°C to 50°C | |
| Dimensions | 440 mm × 210 mm × 44 mm | |
| Weight | Approx. 3.8 kg | |
| Power Supply | Internal | |
