Product Description
Specifications
|
||
---|---|---|

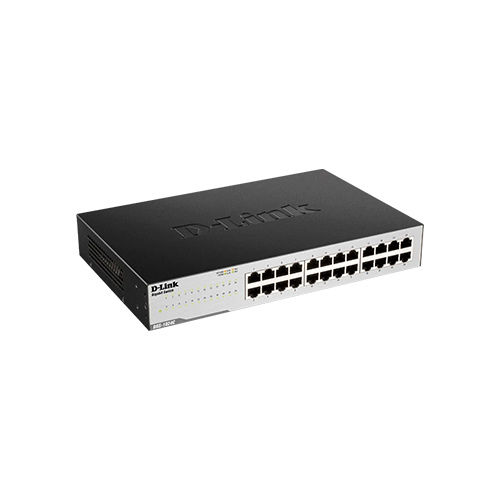

Model | D-Link DGS-F1024V | |
Type | 24-Port Gigabit Unmanaged Switch | |
Ports | 24 × 10/100/1000 Mbps RJ-45 Ports | |
Switching Capacity | 48 Gbps | |
Forwarding Rate | 35.7 Mpps | |
Switching Method | Store-and-Forward | |
Auto MDI/MDIX | Yes, on all ports | |
Energy Efficiency | IEEE 802.3az Energy-Efficient Ethernet | |
QoS Support | 802.1p QoS, 8 Queues per port | |
Flow Control | IEEE 802.3x | |
Jumbo Frame Support | Up to 9,216 bytes | |
MAC Address Table | 16,000 entries | |
Packet Buffer Size | 512 KB | |
LED Indicators | Power, Link/Activity, Speed | |
Dimensions (W × D × H) | 282 × 178 × 44.5 mm | |
Weight | Approx. 1.14 kg | |
Power Input | AC 100–240 V | |
Power Consumption | Max: 13.5 W | |
Noise Level | 0 dB (Fanless design) | |
Operating Temperature | 0°C to 40°C | |
Humidity | Operating: 10%–90% RH, Storage: 5%–95% RH | |
Certifications | RoHS, CE, FCC, VCCI, BSMI, CCC | |
Use Case | Plug-and-play Gigabit connectivity for SOHO/SMB |
