Product Description
|
Specifications
|
||
|---|---|---|
| Product / Model | Dell 540‑BCOB | |

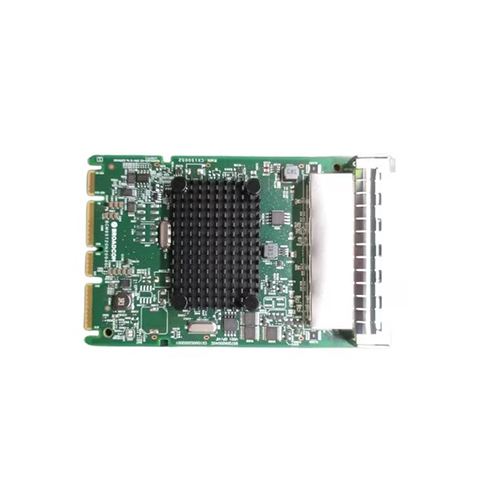

| Product Name | Broadcom 5720 Quad‑Port 1GbE BASE‑T Adapter | |
| NIC Type | OCP NIC 3.0 (Open Compute Project form factor) | |
| Chipset | Broadcom 5720 | |
| Ports | 4 × 1 GbE BASE‑T | |
| Interface (Network) | RJ‑45 (copper) | |
| Network Speeds | 10/100/1000 Mbps per port | |
| Total Aggregate Bandwidth | Up to 4 Gbps (aggregate) | |
| Supported Standards | IEEE 802.3, 802.3u, 802.3ab | |
| Form Factor | OCP NIC 3.0 card (server‑specific) | |
| Bus Interface | OCP edge card connector (for OCP NIC slot) | |
| Typical Use | Server network connectivity, LAN uplinks, redundancy, virtualization | |
| Compatible Platforms | Servers with OCP NIC 3.0 slots (e.g., Dell PowerEdge) | |
| Offload Features | Standard TCP/IP offloads (depending on driver support) | |
| Management | System NIC configuration via OS / driver | |
| Notes | Quad‑port GbE adapter designed for high port density in modern servers | |
