APC SRVPK001 Easy UPS 1‑Phase Parallel Kit Price in Dubai UAE
APC SRVPK001 Easy UPS 1‑Phase Parallel Kit Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | SRVPK001 | |
| Product Type | UPS Parallel Kit / Paralleling Interface | |
| Compatible UPS Series | APC Easy UPS On‑Line SRV series 6 kVA, 10 kVA (1:1 parallel) | |
| Purpose | Allows two or more UPS units to operate in parallel for increased capacity and redundancy | |
| Parallel Configuration | 1:1 (connects up to 3 units in parallel to increase power capacity) | |
| Output Voltage | 230 V AC | |
| Input Voltage | 230 V AC | |
| Output Connections | Hard‑wire 3‑wire (1 Phase + Neutral + Ground) | |
| Input Connections | Hard‑wire 3‑wire (1 Phase + Neutral + Ground) | |
| Overload Protection | Not included in kit | |
| Communications Cable | Included for coordinating UPS units in parallel | |

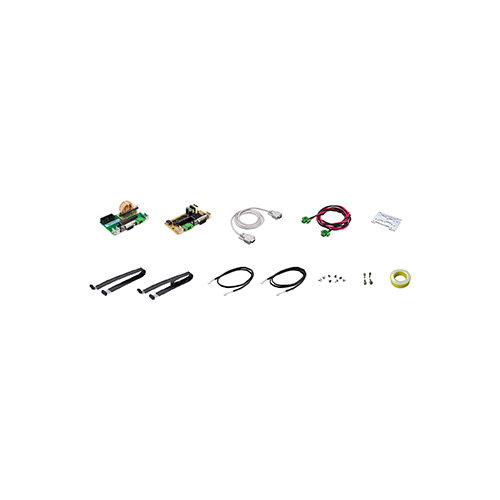

| Accessories Included | Parallel communication cable, cable ties, mounting brackets, user manual | |
| Physical Dimensions | Approx. 50 mm (H) × 78.5 mm (W) × 33 mm (D) | |
| Net Weight | ~0.6 kg | |
| Operating Temperature Range | 0 °C – 40 °C | |
| Operating Humidity Range | 0 – 95 % (non‑condensing) | |
| Mounting Type | Not rack‑mountable (standalone kit) | |
| Certifications / Safety | Designed for use with APC SRV UPS parallel systems | |
