Product Description
|
Specifications
|
||
|---|---|---|

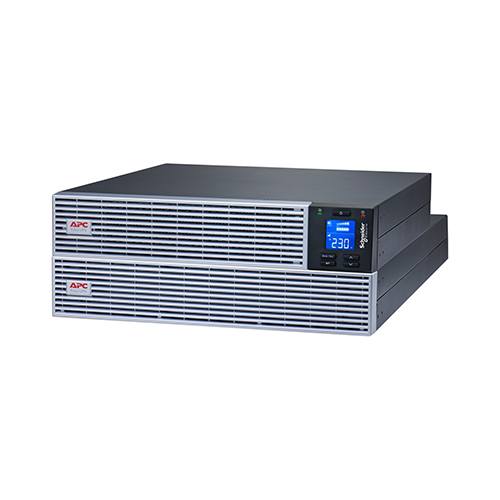

| Model | SRVL2KRIL | |
| Product Type | Online Double‑Conversion UPS with Lithium‑Ion Battery | |
| Rated Capacity | 2,000 VA / 1,800 W | |
| UPS Topology | Double‑conversion (Online) | |
| Nominal Input Voltage | 230 V AC | |
| Input Voltage Range | 110–300 V AC | |
| Input Frequency Range | 40–70 Hz (auto‑sensing) | |
| Nominal Output Voltage | 230 V AC | |
| Output Frequency | 50/60 Hz | |
| Waveform Type | Pure sine wave | |
| Battery Technology | Lithium‑Ion (Li‑Ion) | |
| Battery Voltage | ~38.4 V DC | |
| Battery Configuration | Internal Li‑Ion pack (extended runtime optimized) | |
| Typical Backup Time (Full Load) | Approx. 5–10 min (varies by load) | |
| Typical Backup Time (Half Load) | Approx. 15–30 min (varies by load) | |
| Battery Recharge Time | Approx. 8–10 hours | |
| Bypass | Automatic & Manual Bypass | |
| Surge Protection | Yes | |
| Efficiency | High (typical for Li‑Ion systems) | |
| Display | Multifunction LCD status & control | |
| Communication Ports | USB, RS‑232, network management port support | |
| Form Factor | Rack/Tower convertible | |
| Rack Height Equivalent | Approx. 2U–3U | |
| Operating Temperature | 0 °C – 40 °C | |
| Operating Humidity | 0–95 % (non‑condensing) | |
| Operating Altitude | Up to ~3000 m | |
| Certifications | CE, UKCA, RoHS, applicable safety/EMC standards | |
| Approx. Dimensions (H × W × D) | Approx. 172 × 438 × 616 mm | |
| Approx. Weight | Approx. 40–45 kg (varies with battery) | |
