Product Description
|
Specifications
|
||
|---|---|---|

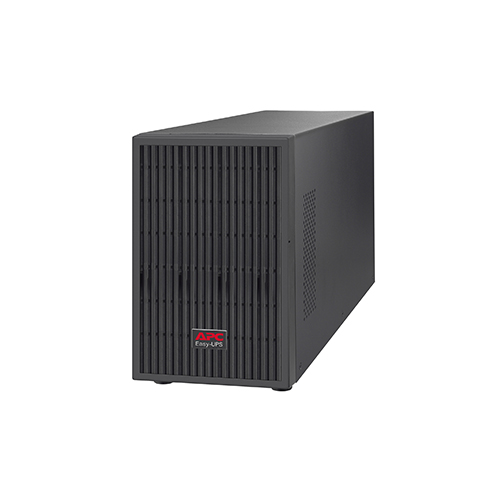

| Model | SRV36BP‑9A | |
| Product Type | External Battery Pack for APC Easy UPS On-Line SRV | |
| Compatible UPS | APC Easy UPS On-Line SRV 1 kVA series | |
| Battery Output Voltage | 36 V DC | |
| Battery Capacity | 648 VAh | |
| Battery Technology | Lead-acid, sealed (VRLA) | |
| Battery Blocks per String | 3 | |
| Mounting Type | Floor-mounted / standalone unit | |
| Expected Battery Life | 3–5 years | |
| Dimensions (H × W × D) | 238 × 145 × 400 mm | |
| Net Weight | 19.6 kg | |
| Color | Black | |
| Operating Temperature | 0 °C – 40 °C | |
| Operating Relative Humidity | 0–95 % (non-condensing) | |
| Operating Altitude | Up to 3000 m | |
| Storage Temperature | –15 °C – 40 °C | |
| Storage Relative Humidity | 0–95 % (non-condensing) | |
| Certifications / Approvals | CE, UKCA, EAC, EN/IEC 62040-1 | |
