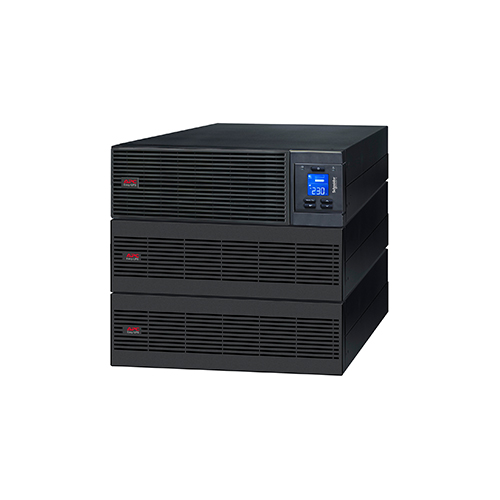

APC SRV20KRILRK Easy UPS On-Line SRV RM 20kVA 230V with Rail kit Batt pack Price in Dubai UAE
APC SRV20KRILRK Easy UPS On-Line SRV RM 20kVA 230V with Rail kit Batt pack Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | SRV20KRILRK | |
| Series | APC Easy UPS On-Line SRV | |
| UPS Type | Online Double-Conversion | |
| Rated Capacity | 20,000 VA / 20,000 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Voltage Range | Approx. 110–300 V AC (half load); 176–300 V AC (full load) | |
| Input Frequency Range | 40–70 Hz (auto-sensing) | |
| Nominal Output Voltage | 230 V AC (selectable 220 / 230 / 240 V) | |
| Output Frequency | 50 / 60 Hz | |
| Output Waveform | Pure sine wave | |
| Topology | True Online Double-Conversion | |
| Crest Factor | 3:1 | |
| Bypass | Internal automatic & manual bypass | |
| Output Connections | Hard-wire 3-wire (1P + N + E) | |
| Input Connections | Hard-wire options (1P + N + E or 3P + N + E) | |
| Battery Type | External VRLA lead-acid (extended runtime) | |
| Battery Voltage | Approx. ±120 V DC system (depends on battery configuration) | |
| External Battery Packs Included | Yes | |
| Battery Recharge Time (Typical) | Approx. 6 hours | |
| Extended Runtime Support | Yes — multiple external battery packs supported | |
| Display Interface | Multifunction LCD status & control panel | |
| Communication Ports | USB, RS-232, Intelligent / SmartSlot | |
| Audible Alarms | On battery, low battery, overload | |
| Emergency Power Off (EPO) | Supported | |
| Rail Kit | Included (for standard 19″ rack mounting) | |
| Rack Height | Approx. 9U | |
| Form Factor | Rack-mount | |
| Approx. Dimensions (H × W × D) | 393 × 438 × 690 mm | |
| Approx. Weight | 157 kg (varies with battery configuration) | |
| Efficiency (Full Load) | Up to 95 % | |
| Operating Temperature | 0 °C – 40 °C | |
| Operating Humidity | 0 – 95 % (non-condensing) | |
| Operating Altitude | Up to ~3000 m | |
| Certifications & Standards | CE, UKCA, IEC/EN 62040 series | |
