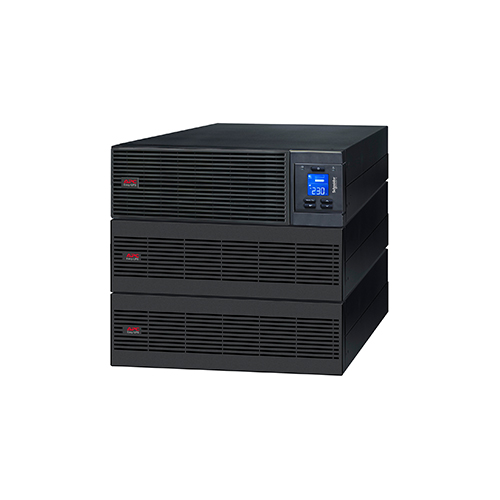

APC SRV15KRILRK Easy UPS On-Line SRV RM 15kVA 230V with Rail kit Batt pack Price in Dubai UAE
APC SRV15KRILRK Easy UPS On-Line SRV RM 15kVA 230V with Rail kit Batt pack Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | SRV15KRILRK | |
| Series | APC Easy UPS On‑Line SRV | |
| UPS Type | Online Double‑Conversion | |
| Rated Capacity | 15,000 VA / 15,000 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Voltage Range | Approx. 110 – 300 V AC (load‑dependent) | |
| Input Frequency Range | 40 – 70 Hz (auto‑sensing) | |
| Nominal Output Voltage | 230 V AC (selectable 220 / 230 / 240 V) | |
| Output Frequency | 50 / 60 Hz | |
| Output Waveform | Pure sine wave | |
| Topology | True Online Double‑Conversion | |
| Crest Factor | 3:1 | |
| Bypass | Internal automatic & manual bypass | |
| Output Connection | Hard‑wire 3‑wire (1P + N + E) | |
| Battery Configuration | External battery packs (extended runtime) | |
| Battery Type | VRLA lead‑acid | |
| Battery Voltage (approx.) | ~120 V DC system (depends on battery configuration) | |
| Recharge Time (typical) | ~5–6 hours | |
| Extended Runtime Support | Yes (multiple external battery packs supported) | |
| Display Interface | Multifunction LCD status & control | |
| Communication Ports | USB, RS‑232, Intelligent / SmartSlot | |
| Audible Alarms | On battery, low battery, overload | |
| Emergency Power Off (EPO) | Supported | |
| Rail Kit | Included (for standard 19″ rack mounting) | |
| Form Factor / Rack Height | Rack‑mount, approx. 9U | |
| Approx. Dimensions (H × W × D) | ~393 × 438 × 690 mm | |
| Approx. Weight | ~150 kg (varies with battery configuration) | |
| Efficiency (Online Mode) | ~95 % | |
| Operating Temperature | 0 °C – 40 °C | |
| Operating Humidity | 0 – 95 % (non‑condensing) | |
| Operating Altitude | Up to ~3000 m | |
| Certifications & Standards | CE, UKCA, IEC/EN 62040 series | |
