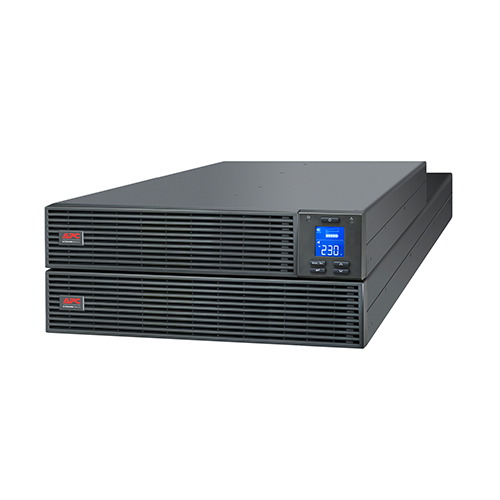

APC SRV10KRIRK Easy UPS SRV RM 10000VA 230V Rack-Mount UPS with Rail Kit and External Battery Pack Price in Dubai UAE
APC SRV10KRIRK Easy UPS SRV RM 10000VA 230V Rack-Mount UPS with Rail Kit and External Battery Pack Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | SRV10KRIRK | |
| Series | APC Easy UPS SRV On‑Line | |
| UPS Type | Online Double‑Conversion | |
| Rated Capacity | 10,000 VA / 10,000 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Voltage Range | Approx. 110–300 V (load dependent) | |
| Input Frequency Range | 40–70 Hz (auto‑sensing) | |
| Nominal Output Voltage | 230 V AC (configurable 220 / 240 V) | |
| Output Frequency | 50/60 Hz (synchronized to mains) | |
| Output Waveform | Pure sine wave | |
| Topology | Double‑Conversion On‑Line | |
| Crest Factor | 3:1 | |
| Bypass | Internal automatic & manual bypass | |
| Output Connections | Hard‑wire (1P + N + E) | |
| Battery Configuration | External battery pack included | |
| Battery Type | VRLA lead‑acid batteries | |
| Battery Voltage | Approx. 192–240 V DC (depends on battery set) | |
| Extended Runtime Support | Yes (external battery packs) | |
| Typical Recharge Time | Approx. 4–8 hours | |
| Display Interface | Multifunction LCD | |
| Communication Ports | USB, RS‑232, SmartSlot / Intelligent slot | |
| Emergency Power Off (EPO) | Supported | |
| Audible Alarms | On battery, low battery, overload, fault | |
| Rail Kit | Included (for standard 19″ rack installation) | |
| Rack Height | Approx. 4U–6U (depending on battery set) | |
| Approx. Dimensions (W × H × D) | Approx. 438 × 263 × 719 mm | |
| Approx. Weight | Approx. 80 kg (varies with battery set) | |
| Efficiency (Online Mode) | Approx. 94% | |
| Operating Temperature | 0 °C – 40 °C | |
| Operating Humidity | 0 – 95% (non‑condensing) | |
| Operating Altitude | Up to approx. 3000 m | |
| Certifications | CE, RoHS (and regional safety/EMC standards) | |
