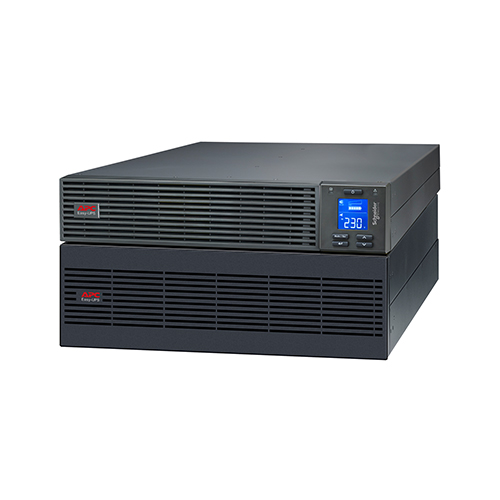

APC SRV10KRILRK Easy UPS SRV RM 10000VA 230V Rack-Mount UPS with External Battery Pack and Rail Kit Price in Dubai UAE
APC SRV10KRILRK Easy UPS SRV RM 10000VA 230V Rack-Mount UPS with External Battery Pack and Rail Kit Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | SRV10KRILRK | |
| Series | APC Easy UPS SRV On‑Line | |
| UPS Type | Double‑conversion On‑Line | |
| Rated Capacity | 10,000 VA / 10,000 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Voltage Range | ~110 – 300 V (load‑dependent) | |
| Input Frequency Range | 40 – 70 Hz (auto‑sensing) | |
| Nominal Output Voltage | 230 V AC (configurable 220 / 240 V) | |
| Output Frequency | 50 / 60 Hz ± 3 Hz | |
| Output Waveform | Pure sine wave | |
| Topology | True online double‑conversion | |
| Crest Factor | 3:1 | |
| Bypass | Internal automatic & manual bypass | |
| Output Connection | Hard‑wire 3‑wire (1P + N + E) | |
| Battery Configuration | External battery pack included | |
| Battery Type | Lead‑acid (VRLA) | |
| Battery Voltage | ~240 V DC | |
| Recharge Time (typical) | ~5 hours | |
| Extended Runtime | Yes — expandable with additional external battery packs | |
| Display Interface | Multifunction LCD status & control panel | |
| Communication Ports | USB, RS‑232, SmartSlot/intelligent slot | |
| Audible Alarms | On‑battery, low battery, overload | |
| Emergency Power Off (EPO) | Supported | |

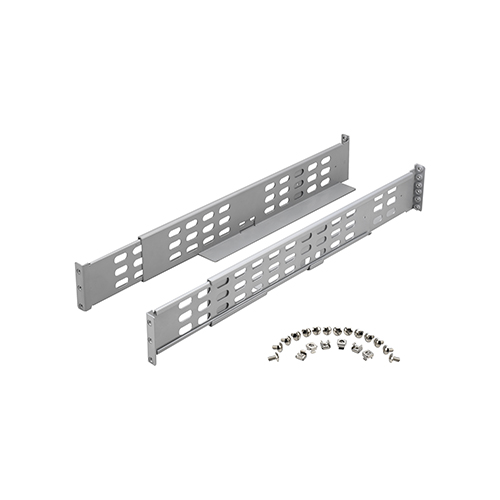

| Rail Kit | Included — compatible with standard 19″ racks | |
| Rack Height | ~5U | |
| Approx. Dimensions (W × H × D) | ~438 mm × 220 mm × 615 mm | |
| Approx. Weight | ~78 kg (may vary with battery configuration) | |
| Efficiency (Full Load) | ~94 % | |
| Operating Temperature | 0 °C – 40 °C | |
| Operating Humidity | 0 – 95 % non‑condensing | |
| Operating Altitude | Up to ~3000 m | |
| Certifications | CE, IEC 62040 series, RoHS, UKCA, EAC | |
