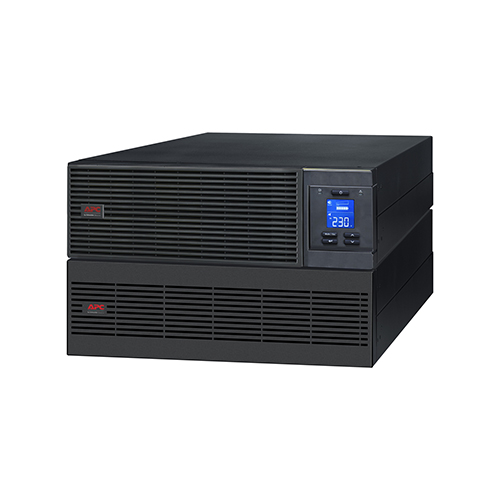

APC SRV10KRIL31RK Easy UPS On-Line SRV 10kVA RM 230V with Extended Runtime Battery Pack and Rail Kit Price in Dubai UAE
APC SRV10KRIL31RK Easy UPS On-Line SRV 10kVA RM 230V with Extended Runtime Battery Pack and Rail Kit Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | SRV10KRIL31RK | |
| Series | APC Easy UPS On-Line SRV | |
| UPS Type | Double-conversion On-Line | |
| Rated Capacity | 10,000 VA / 10,000 W | |
| Nominal Input Voltage | 230 V | |
| Input Voltage Range | Typically ~110 – 300 V (load dependent) | |
| Input Frequency Range | 40–70 Hz (auto-sensing) | |
| Nominal Output Voltage | 230 V (user-selectable 220/230/240 V) | |
| Output Frequency | 50/60 Hz (sync to mains) | |
| Output Waveform | Pure sine wave | |
| Topology | True On-Line Double-Conversion | |
| Crest Factor | 3:1 | |
| Bypass | Internal automatic & manual bypass | |
| Output Connections | Hard-wire 3-wire (1P + N + E) | |
| Input Connections | Hard-wire (3P + N + E) option available | |
| Battery Configuration | External battery pack with extended runtime | |
| Battery Type | Lead-acid | |
| Battery Voltage | ~240 V DC | |
| Typical Recharge Time | ~5–6 hours | |
| Expandable Runtime | Yes (supports additional external battery packs) | |
| Display Interface | Multifunction LCD status & control panel | |
| Communication Ports | USB, RS-232, Intelligent slot | |
| Audible Alarms | On-battery, low battery, overload alarms | |
| Emergency Power Off (EPO) | Supported | |
| Rail Kit | Included for standard rack installation | |
| Rack Height | ~5U | |
| Dimensions (Approx.) | ~438 × 220 × 615 mm | |
| Net Weight (Approx.) | ~78–111 kg (with external battery) | |
| Efficiency | Up to ~94% at full load | |
| Operating Temperature | 0 °C – 40 °C | |
| Operating Humidity | 0–95 % non-condensing | |
| Operating Altitude | Up to ~3000 m | |
| Certifications & Safety | CE, UKCA, EAC, TISI / EN/IEC 62040 standards | |
| Acoustic Noise Level | Approx. ~58 dBA | |
