Product Description
| Category | Specification |
|---|---|

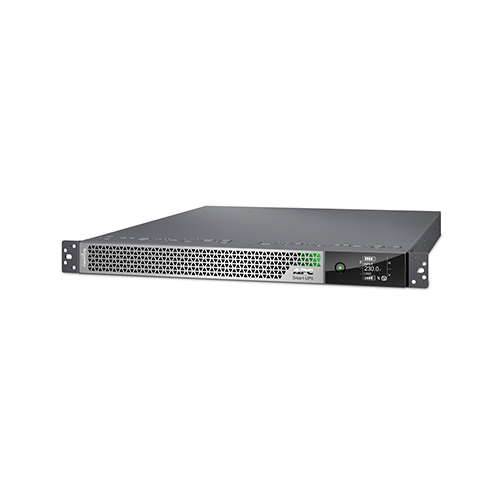

| Product Name | Smart-UPS Ultra 3000VA Lithium-Ion Rack UPS |
| Model Number | SRTL3KRM1UWNC |
| Brand | APC |
| Manufacturer | Schneider Electric |
| UPS Topology | Double-Conversion Online |
| Power Capacity | 3000 VA / 3000 W |
| Rack Height | 1U |
| Form Factor | Rackmount / Tower Convertible |
| Input Voltage | 208–240 V AC |
| Input Voltage Range | 160–275 V |
| Output Voltage | 208 V / 230 V |
| Output Frequency | 50/60 Hz (auto-sensing) |
| Waveform Type | Pure Sine Wave |
| Output Connections | 3 × IEC C13, 2 × IEC C19 |
| Battery Type | Lithium-Ion |
| Typical Runtime (Full Load) | ~4.6 minutes |
| Typical Runtime (Half Load) | ~10 minutes |
| Battery Recharge Time | ~1.5 hours |
| Expandable Runtime | Supports up to 5 external battery packs |
| Network Management | Embedded Network Management Card |
| Management Software | EcoStruxure IT / PowerChute |
| Interfaces | USB, Network Ethernet, EPO Port |
| Display | LCD interface |
| Noise Level | ~55 dB |
| Dimensions (H × W × D) | 43 × 432 × 560 mm |
| Weight | ~15.9 kg |
| Operating Temperature | 0 – 40 °C |
| Operating Humidity | 0–95% non-condensing |
