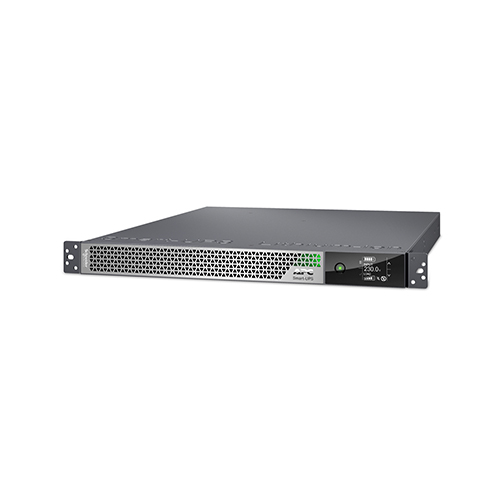

Product Description
| Category | Specification |
|---|---|
| Brand / Manufacturer | APC by Schneider Electric |
| Model Number | SRTL2K2RM1UWNC |
| Product Line | Smart-UPS Ultra |
| Product Type | Double-Conversion Online UPS |
| Form Factor | Rackmount |
| Rack Height | 1U |
| Power Capacity | 2200 VA / 2200 W |
| Topology | Online Double-Conversion |
| Input Voltage | 208 V / 230 V AC |
| Input Voltage Range | 160 – 275 V AC |
| Input Frequency | 50 / 60 Hz |
| Output Voltage | 208 V / 230 V AC (user selectable) |
| Output Frequency | 50 / 60 Hz |
| Waveform Type | Pure Sine Wave |
| Output Connections | 3 × IEC C13, 2 × IEC C19 |
| Battery Type | Lithium-Ion (Li-ion) |
| Battery Life Expectancy | Up to 8–10 years |
| Battery Recharge Time | ~1.5 hours |
| Typical Runtime (Full Load) | ~6 minutes |
| Typical Runtime (Half Load) | ~14 minutes |
| Expandable Runtime | Supports up to 5 external battery packs |
| Network Management | Embedded Network Management Card |
| Network Interface | Ethernet (RJ-45) |
| USB Ports | USB Type-A / Type-B |
| Display | LCD Touchscreen (auto-rotating) |
| Mounting Options | Rack (2-post/4-post), Tower, Wall, Ceiling, Desk under-mount |
| Operating Temperature | 0 °C – 40 °C |
| Operating Humidity | 0 – 95% RH (non-condensing) |
| Dimensions (H × W × D) | 43 × 432 × 560 mm |
| Weight | ~15.9 kg |
| Certifications / Compliance | CE, RoHS, REACH |
| Colour | Silver / Grey |
