Product Description
|
Specifications
|
||
|---|---|---|

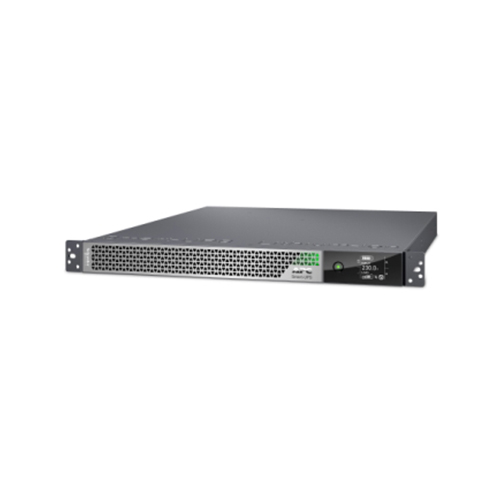

| Product Name | APC Smart-UPS Ultra 2200VA UPS | |
| Model Number | SRTL2K2RM1UIC | |
| Product Type | On-Line Uninterruptible Power Supply (UPS) | |
| UPS Series | Smart-UPS Ultra | |
| Rated Power Capacity | 2200 VA / 2200 W | |
| Input Voltage | 230 V AC | |
| Input Voltage Range | 160–275 V | |
| Output Voltage | 230 V AC | |
| Output Waveform | Pure sine wave | |
| UPS Topology | Double-conversion (Online) | |
| Battery Technology | Lithium-Ion (Li-Ion) | |
| Battery Voltage | ~50 V | |
| Battery Life | ~8–10 years | |
| Battery Recharge Time | ~1.5 hours | |
| Runtime (Approx.) | ~6 min at full load; longer at lower loads | |
| No. of Outlets | 5 AC outlets (mix of IEC C13 & C19) | |
| Form Factor | 1U Rackmount | |
| Mounting Options | Rack, tower, wall, ceiling, desk | |
| Display | Auto-rotating touchscreen LCD | |
| Connectivity | SmartConnect (Ethernet) for remote monitoring | |
| Communication Ports | Ethernet (RJ-45), USB | |
| Emergency Power Off (EPO) | Supported | |
| Noise Level | ~55 dB | |
| Dimensions (H × W × D) | ~43 × 432 × 560 mm | |
| Weight | ~15.9 kg | |
| Operating Temperature | 0–40 °C | |
| Operating Humidity | 0–95% non-condensing | |
| Certifications | CE, RoHS, IEC standards | |
| Application | Critical servers, networking, data centers | |
