Product Description
|
Specifications
|
||
|---|---|---|

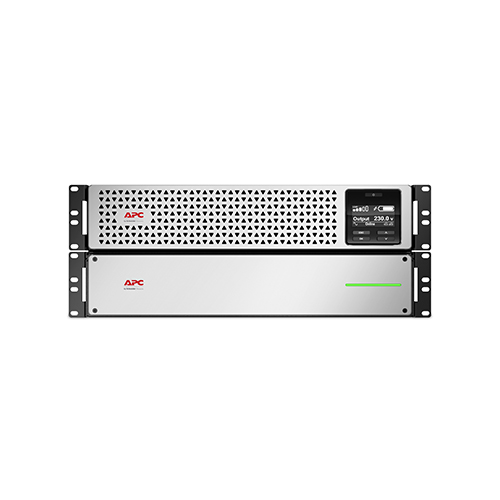

| Product Name | APC Smart-UPS SRT 2200VA UPS | |
| Model Number | SRTL2200RM4UXLI‑NC | |
| Product Type | On-Line Uninterruptible Power Supply (UPS) | |
| UPS Series | Smart-UPS SRT | |
| Rated Power Capacity | 2200 VA / 1980 W | |
| Input Voltage | 230 V AC | |
| Input Voltage Range | 160–275 V | |
| Output Voltage | 230 V AC | |
| Output Waveform | Pure sine wave | |
| UPS Topology | Double-conversion (Online) | |
| Battery Technology | Lithium-Ion (Li-Ion) | |
| Battery Voltage | 48 V | |
| Battery Life | Up to ~10 years | |
| Runtime (Approx.) | Extended long-runtime configuration | |
| Number of Outlets | 8 (6×IEC C13 + 2×IEC C19) | |
| Form Factor | 4U Rackmount | |
| Mounting Options | Rack (4U) / Tower convertible | |
| Network Management | Embedded Network Management Card included (remote monitoring & control) | |
| Display & Alarms | LCD/LED status display with audible alarms | |
| Rail Kit | Included for rack installation | |
| Dimensions (H × W × D) | ~171 × 432 × 639 mm | |
| Weight | ~44.5 kg | |
| Operating Temperature | 0 – 40 °C | |
| Operating Humidity | 0 – 95 % non-condensing | |
| Certifications | Green Premium, IEC standards | |
| Application | Critical servers, networking & data center equipment | |
