Product Description
|
Specifications
|
||
|---|---|---|

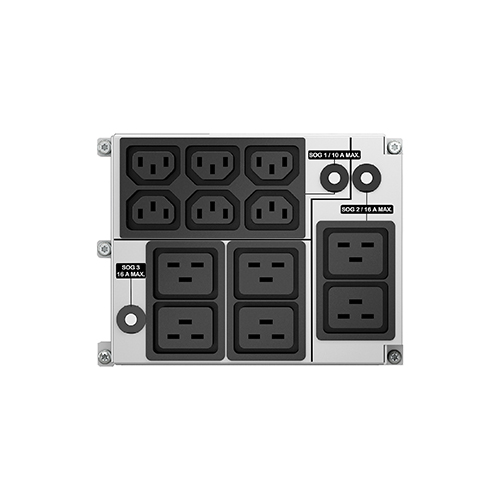

| Product Name | APC Smart-UPS Ultra 10kVA PDU | |
| Model Number | SRTL010 | |
| Product Type | Power Distribution Unit (PDU) | |
| Rated Capacity | 10 kVA / 10 kW | |
| Input Voltage | 230 V AC | |
| Output Voltage | 230 V AC | |
| Number of Outlets | 12 total (6×IEC C13 + 6×IEC C19) | |
| Mounting Type | Rackmount | |
| Form Factor | 1U/2U (rack) | |
| Connectivity / Monitoring | Supports integration with Smart-UPS Ultra systems | |
| Input Connection | Single-phase input | |
| Output Protection | Circuit breakers per outlet group | |
| Material | Metal chassis | |
| Dimensions (H × W × D) | ~44 × 432 × 400 mm | |
| Weight | ~12 kg | |
| Operating Temperature | 0–40 °C | |
| Operating Humidity | 0–95% non-condensing | |
| Certifications | CE, RoHS, IEC standards | |
| Application | Power distribution for servers, networking equipment, and data centers | |
