Product Description
| Specification Category | Details |
|---|---|

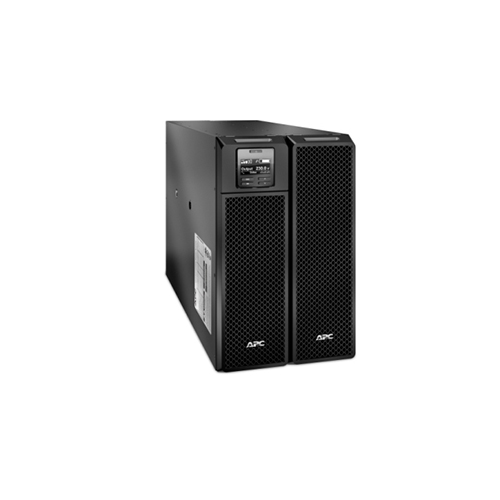

| Manufacturer | APC by Schneider Electric |
| Model | SRT8KXLI |
| UPS Type | Double‑conversion online (true online) |
| Form Factor | Rack/Tower convertible |
| Output Power Capacity | 8000 VA / 7200 W |
| Nominal Output Voltage | 230 V AC |
| Output Frequency | 50/60 Hz (auto‑sensing) |
| Output Waveform | Pure sine wave |
| Input Voltage Range | Wide input range (supports typical 230 V mains variations) |
| Input Frequency Range | 40–70 Hz (auto‑sensing) |
| Topology | Double‑conversion online |
| Output Connections | Multiple IEC C13 and IEC C19 receptacles (varies by region/configuration) |
| Bypass | Internal automatic and manual bypass circuits |
| Battery Type | Maintenance‑free sealed lead‑acid (VRLA) |
| Typical Runtime | Runtime varies with load; longer at lighter loads |
| External Battery Support | Compatible with APC external battery packs (e.g., SRT192BP family) for extended runtime |
| Display | LCD status and diagnostics display |
| Communication Interfaces | USB, Serial (RS‑232), network management support via SmartSlot |
| Surge Protection & Filtering | Yes |
| Audible Alarms | Yes |
| Operating Temperature | 0 – 40 °C |
| Operating Humidity | 0 – 95 % non‑condensing |
| Dimensions (H × W × D) | Approximately similar to other 8 kVA SRT models (varies by specific housing) |
| Net Weight | Typically ~80–95 kg (varies by configuration) |
| Certifications / Compliance | IEC/EN 62040 standards, UL‑1778, CE, FCC Class A, etc. |
| Typical Applications | High‑power server clusters, storage systems, virtualization hosts, mission‑critical IT infrastructure |
