Product Description
| Specification | Details |
|---|---|

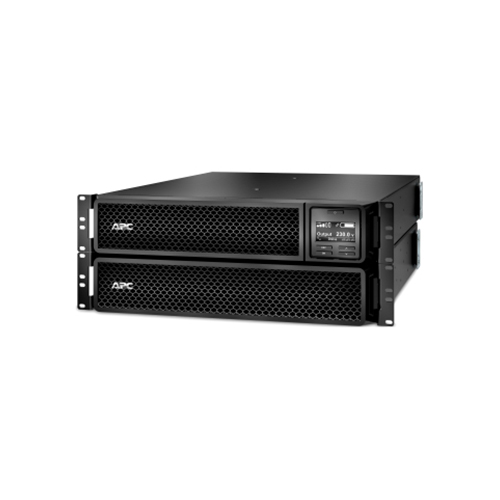

| Product Name | Smart-UPS SRT 3000VA RM 208/230V IEC |
| Model / Part Number | SRT3000RMXLW-IEC |
| Brand | APC |
| Manufacturer | APC by Schneider Electric |
| Product Type | Online double-conversion UPS |
| Form Factor | Rackmount (2U) |
| Color | Black |
| Rated Power Capacity | 3000 VA / 2700 W |
| UPS Topology | Double conversion online |
| Nominal Input Voltage | 208 V / 230 V |
| Input Frequency Range | 40 – 70 Hz (auto-sensing) |
| Nominal Output Voltage | Selectable 208 V / 220 V / 230 V |
| Output Waveform | Pure sine wave |
| Output Frequency Range | 50/60 Hz ± 3 Hz |
| Output Connections | IEC-320 C13 and C19 outlets appropriate for IEC systems |
| Bypass | Internal automatic and manual bypass |
| Battery Type | Sealed, maintenance-free lead-acid |
| Battery Configuration | Internal battery modules |
| Typical Recharge Time | Approx. 3 hours |
| Runtime (Full Load) | Approx. 4 minutes |
| Runtime (Half Load) | Approx. 11–12 minutes |
| Communications / Management Interfaces | USB, Serial (RJ-45), SmartSlot |
| Control Panel | Multifunction LCD display |
| Audible and Visual Alarms | Yes |
| Emergency Power Off (EPO) Support | Yes |
| Operating Temperature Range | 0 °C to 40 °C |
| Operating Relative Humidity | 0 % to 95 % non-condensing |
| Noise Level | Approx. 55 dBA |
| Dimensions (W × H × D) | Approx. 432 × 85 × 635 mm |
| Weight (Approx.) | Approx. 31.3 kg |
| Certifications / Compliance | CE, UL-1778, FCC, EN/IEC standards, ENERGY STAR, RoHS |
| Typical Applications | Servers, storage, networking, telecom and critical systems |
